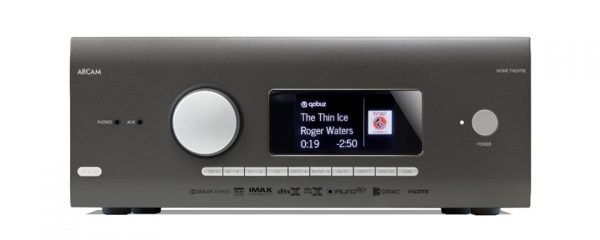

Arcam AVR30 9.1.6 (Decoding) Channel AV Receiver

Description

With an impressive 16-channel surround solution and featuring all the latest CODECs from Dolby, DTS, Auro-3D and IMAX Enhanced, the AVR30 exemplifies sound quality and engineering excellence.

The AVR30 boasts dynamic class G amplification, powering the most complex speakers with ease while delivering great efficiency. Audiophile listening experiences are optimised with full 16-channel Dirac calibration on board as well as simple streaming with a mobile device using the native app of choice via Apple AirPlay2 or Google Chromecast.

Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://live.dirac.com/home-audio/

Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.

Features
• Dolby Atmos & DTS:X 9.1.6 decoding
• 4K (UHD) HDMI2.0b with HDCP2.2
• 7 HDMI inputs, 3 HDMI outputs, eARC compatible
• Dirac Live® for Arcam room correction
• ESS 9026PRO audiophile DAC
• Class G power amplification –
Uses toroidal transformer
• Wifi / Ethernet, RS232 and IR control
• Google Cast/UPnP capability for streaming audio
• Bluetooth
• Free MusicLife iOS UPnP and control app

SPECIFICATIONS

Continuous power output, per channel, 8Ω/4Ω
2 channels driven, 20Hz – 20kHz, <0.02% THD: 120W/200W 2 channels driven, 1kHz, 0.2% THD: 140W/220W 7 channels driven, 1kHz, 0.2% THD: 100W/180W Residual noise & hum (A-wtd): <0.15mV Stereo Line Inputs
Maximum input: 4.5V rms
Nominal sensitivity: 1V, 2V, 4V (user adjustable)
Input impedance: 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct: 100dB/110dB
Frequency response: 20Hz—20kHz ± 0.2dB

Preamplifier Outputs
Nominal output level: 1V RMS (max. 5V RMS)
Output impedance: 560Ω
THD+N (20Hz—20kHz): –100dB

Headphone Output
Maximum output level into 32Ω: 5Vrms
Output impedance: <100Ω General
Mains voltage: 110–120V or 220–240V, 50–60Hz
Power consumption (maximum): 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical): 100W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby): <0.5W Dimensions W x D (including speaker terminals) x H (including feet): 433 x 425 x 171mm Weight (net): 18.1kg Weight (packed): 21.4kg Supplied accessories
Mains lead
Remote control with 2 x AAA batteries
Manual
DAB/FM aerial
3 x WiFi/Bluetooth antennas
Calibration microphone
USB cable
