Description

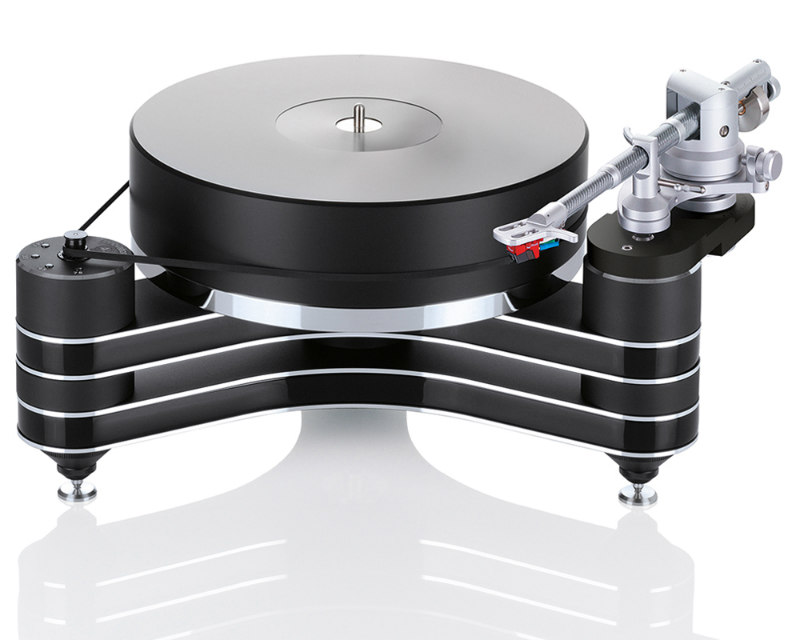

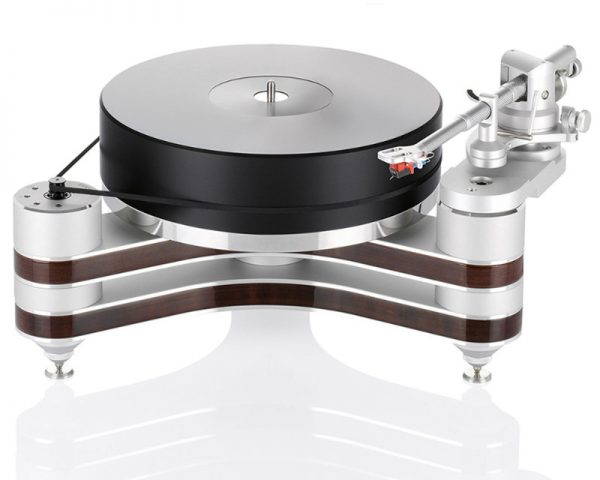

An infrared sensor combined with Clearaudio’s optical speed control (OSC) ensures an outstanding level of speed stability – a prerequisite for optimal listening. A high-torque decoupled DC motor effortlessly rotates the precision-machined 70mm-thick platter made of high-density acrylic. The platter rotates in a virtually frictionfree environment atop the 15mm-thick stainless steel sub-platter, thanks to Clearaudio’s patented ceramic magnetic bearing (CMB). A convenient choice of three rotational speeds is also at your fingertips, and it is possible to install a second tonearm.
SPECIFICATIONS
CONSTRUCTION PRINCIPLE: Resonance–optimised chassis shape, made of laminated wood and aluminium with precision CNC machined surface.
All turntable feet are fine adjustable
Optical Speed Control (OSC)
Playback with two tonearms possible
SPEED RANGES: Comfortable speed change
33 ⅓ rpm, 45 rpm, 78 rpm
DRIVE UNIT: High torque DC motor with belt drive
Electronic Optical Speed Control (OSC)
BEARING: Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly. Inverted bearing in lower drive platter.
PLATTER: 70 mm / 2.75-inch main platter, made out of synthetic material with high density and excellent dimension stability, precision CNC machined surface, solid stainless steel sub–platter, dynamically balance
SPEED ACCURACY (MEASURED): < ± 0.05 %
SPEED VARIATION: < ± 0.01 %
POWER CONSUMPTION: Max. consumption: 9.3 Watt
Consumption in operation: 2.5 Watt
Standby mode: 2.5 Watt
Off mode: 0.0 Watt
TOTAL WEIGHT: Approx. 24 kg (without tonearm and power supply)
DIMENSIONS (W/D/H in inches): Approx. 18.11 x 19.09 x 8.66 (with tonearmbase, without tonearm)
DIMENSIONS (W/D/H in mm): Approx. 460 x 485 x 220 (with tonearmbase, without tonearm):
