Description

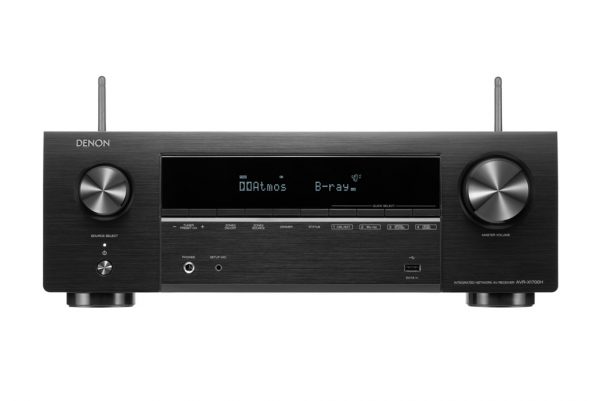

Upgrade your home theater with the Denon AVR-X1700H. With 80W per channel (8 ohms, 20Hz-20kHz, THD: 0.08%, 2 ch. driven), this performance-tuned Denon AV receiver provides a truly immersive 3D audio experience. Supports Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X® and DTS Virtual:X™. The AVR-X1700H also supports the latest video technologies such as 8K/60Hz and select 4K/120Hz pass-through on three dedicated inputs, Dolby Vision™, HDR10, HDR10+, Dynamic HDR, HLG, as well as 8K upscaling and HDCP 2.3 support on all HDMI inputs (6 in/1 out).
The front-panel USB offers convenient audio playback of MP3 and Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6 MHz files). Stream popular music services like Spotify®, Amazon Music HD, TIDAL, Deezer, TuneIn, Soundcloud and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS® Built-in. The Denon AVR-X1700H works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control.*
By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get setup right the first time. Every home theater is different — that’s why Denon uses premium room calibration technology from Audyssey that automatically measures and optimizes your AV receiver to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.
FEATURES
- 7.2 channel AV receiver with 80W power per channel: Seven powerful amplifiers tuned to provide the classic and dynamic Denon sound experience
- Supports Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X: Enjoy an immersive, three-dimensional audio experience up to 7.2.4 with an additional 2ch amplifier
- Full 8K/60Hz and 4K/120Hz support: With the latest HDMI support, enjoy 8K quality video from your 8K source devices. Three 8K inputs and one output allow for 8K/60Hz and 4K/120Hz pass-through. 8K upscaling is available on all 6 HDMI inputs.
- The latest in video compatibility: The latest HDR format support including HDR10, HDR10+, HLG, Dolby Vision, as well as Dynamic HDR, to provide the greatest picture quality for brightness, clarity and contrast.
- The latest in gaming experiences: With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), enjoy your gaming experience with amazing imaging, as well as reduced lag and latency from features.
- Award-winning Denon Setup Assistant and graphical user interface: Easy and intuitive out-of-box setup experience
- Amazon Alexa, Google Assistant and Apple Siri voice control: Use your voice to control the AVR-X1700H and wireless music services hands-free
- HEOS Built-in wireless multi-room music streaming technology: Listen from any room of your home for a connected, whole-home audio experience
- Smart TV connectivity: Control the Denon AVR-X1700H with your TV remote via HDMI CEC
Enhanced Audio Return Channel (eARC): Supports the latest 3D audio formats such as Dolby Atmos and DTS:X from your TV audio signal via HDMI - Game Mode: Supports Auto Low Latency Mode (ALLM) for lag-free gaming (requires supported 4K display and game console)
- Supports Spotify, Amazon Music HD, TuneIn, Deezer and more: Wirelessly stream and enjoy the most popular music services
- High-resolution DSD (2.8/5.6MHz), FLAC, ALAC and WAV support: High-resolution audio streaming for Hi-Fi enthusiasts
- Integrated Phono input: Supports vinyl records for Hi-Fi listening
- DSP chip with four 300MHz DSP cores: Powers the latest video, sound and processing needs
- All Zone TV audio: Play the audio from your TV to all zones
- Audyssey MultEQ XT calibration software: Delivers ultimate equalization for your unique listening environment
SPECIFICATIONS
Number of Power Amps: 7
Power Output:
80 watts per channel
(8 ohms, 20Hz–20kHz, .08%,
2ch driven)
120 watts per channel
(6 ohms, 1kHz, .7%, 2ch driven)
145 watts per channel
(6 ohms, 1 kHz, THD 1%,
1ch driven)
Speaker Impedance: 4-16Ω/ohms
Preamplifier Section
Input Sensitivity/Impedance: 200mV
Frequency Response: 10Hz–100kHz – +1, -3 dB (Direct Mode)
S/N Ratio: 98dB (IHF-A weighted,
Direct mode)
FM Section
Tuning Frequency Range: 87.5 – 107.9MHz
AM Section
Tuning Frequency Range: 520–1710kHz
General
Power Supply: AC 230V/50Hz
Power Consumption: 430W (Standby 0.1W,
CEC standby 0.5W)
Power Consumption (No Sound):
29W (ECO Mode On)
39W (ECO Mode Off)
Maximum Dimensions (WxHxD):
434 x 151 x 339mm
Carton Dimensions
(Packaging) (WxHxD): 523 x 232 x 435 mm
Weight: 8.5kg
Weight (Packaging): 10.6kg
Ports
In
HDMI: 6
Composite: x2
Phono: x1
Analogue Audio: x2
Digital Optical: x2
USB (Front): x1
Out
HDMI Monitor (eARC): x1
Composite: x1
Audio Pre-Out: 0.2ch
Zone 2 (pre-out / speaker assignable): – / x1
Headphones: x1
Other Ethernet: x1
Microphone Port: x1
FM/AM Tuner Antenna: x1
