E.A.T C-SHARP Turntable With Ortofon Quintet Black S Moving Coil Cartridge Fitted

Brand:

E.A.T European Audio Team

$6,499.00

Category:

Description

The C- SHARP

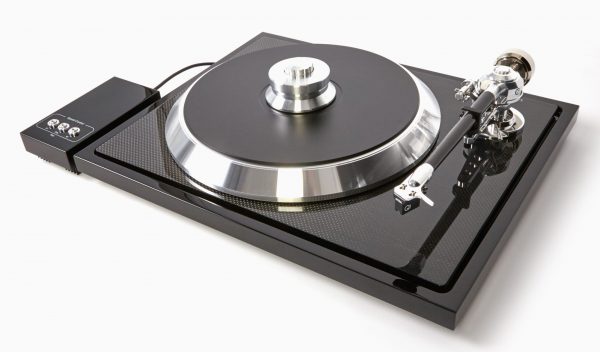

Thanks to new materials like Carbon Fibre and Thermoplastic Elastomer E.A.T has designed a new superflat table. The low-profile base chassis is made out of the highest density MDF. Because of its flatness, this base sits perfectly stable on any surface! On this base, the ultra-low noise motor is mounted as well as 10 damping feet out of energy-absorbing TPE (Thermoplastic Elastomers = Hightech high energy absorbing damping material). The cone shape TPE columns carry a SANDWICH sub-chassis out of Carbon Fibre and MDF composite with ultimate rigidity.

The stiffness is important to be a super rigid base for the tonearm/cartridge and bearing/platter as there must be 100 % no moving tolerance between the distance of the groove and the tracking cartridge. All the rumble of the platter/bearing is directed in the TPE columns.

The belt is made from special anti-static rubber. It’s glued and then polished.

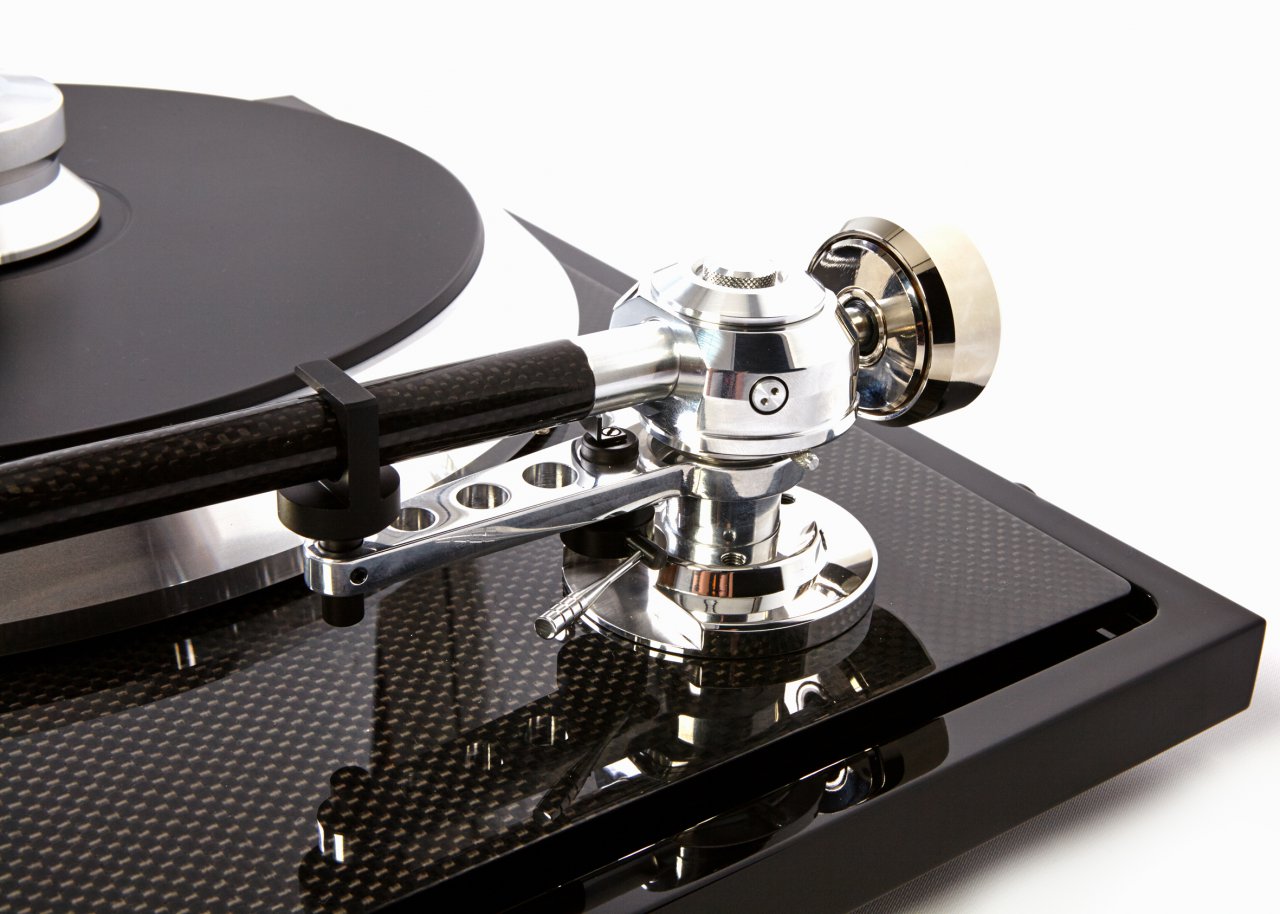

The tonearm itself is a completely new design that combines all advantages of a unipivot arm with a cardan design. The uni-pivot in the middle only helps the bearing to be less loaded. The traditional Cardan bearing insures high stability and ease of use with very low friction. Also inside the tonearm is a special silicon-based grease to damp the tonearm/cartridge resonances by more than 50%

The tube is manufactured out of carbon, super stiff and rigid. The headshell we made out of special light and rigid aluminium to get a perfect combination of the advantages of carbon with the better inner damping of the aluminium as well as the possibility of tighter mounting of Highend MC cartridges.

An external DC power supply unit with an AC Generator creates new total clean power for the motors. For sure you have also 33 /45 electronic switching.

SPECIFICATIONS

NOMINAL SPEED 33/45 rpm, driven by microprocessor, separate control panel, lighted control buttons
SPEED VARIANCE 33 rpm: ± < 0,08%, 45 rpm: ± < 0,09% SIGNAL TO NOISE S/N Ratio ( mechanical noise): – 40 dB, Signal to noise (electrical noise): -70 dB
DOWNFORCE RANGE 0 – 30 mN
SUPPLIED COUNTERWEIGHTS without additional insert =>for cartridge 5 – 9g (125g), with additional insert =>for cartridge 8,5 – 13g(142g)
EFFECTIVE TONEARM MASS 16.5 g
EFFECTIVE TONEARM LENGHT 254 mm
OVERHANG 16 mm
POWER CONSUMPTION 8,5 W max / 0,5 W stanby
VOLTAGE Universal swith mode power supply 15 V DC / 1,6 A, 90-264 V AC, 47 – 63Hz
DIMENSIONS (W × H × D) 500 × 400 × 115mm without connectors, 500 × 435 × 115mm with connectors in the rear panel
WEIGHT (WITHOUT BOX) 13,5 kg + 0,5 kg Separated control panel

Additional information

Colour

Black, White
