An innovative concept inspired by the legendary LS3/5a, the LS50 mini monitor speaker is designed to bring a professional studio monitor concept into the home.
Rarely the case in such a compact design, the LS50 monitor delivers a rich, multi-dimensional ‘soundstage experience’ that is out of all proportion to its size. Patent-pending acoustic designs, together with state-of-the-art technologies from KEF’s latest flagship Blade loudspeaker, provide the ultimate studio experience – even in the smallest of spaces.

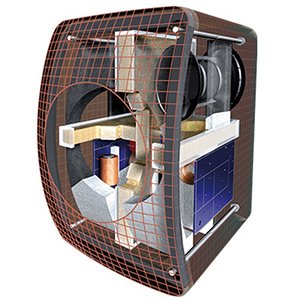

Creating a small housing capable of delivering such a spacious sound is the result of considerable research and development. In cabinet construction, baffle shaping and port design, LS50 breaks new ground with patent-pending technology. All this is made possible by KEF’s leadership in modern research (including techniques such as Finite Element Analysis and Computational Fluid Dynamics*). LS50’s unique technology offers by far the cleanest, most accurate studio-grade performance of any mini monitor.

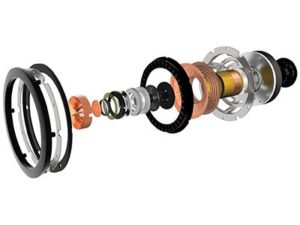

LS50 employs revolutionary technology developed for Blade, KEF’s latest flagship loudspeaker. Using the very latest Uni-Q driver, specifically designed for this model, LS50 radiates an extremely large listening sweet spot and delivers a remarkably fast, clean sound. And, because LS50 neither adds nor subtracts a single sound, it’s effortlessly natural and accurate too.
Design: Two-way bass reflex
Drive units: Uni-Q driver array:
HF: 25mm (1in.) vented
LF/MF: 130mm (5.25in.)
Frequency range (-6dB): 47Hz – 45kHz
Frequency response (±3dB): 79Hz – 28kHz
Crossover frequency: 2.2kHz
Amplifier requirements: 25 – 100 W
Sensitivity (2.83V/1m): 85dB
2nd & 3rd harmonics (90dB, 1m): <0.4% 175Hz-20kHz Maximum output: 106dB
Nominal impedance: 8Ω (min. 3.2Ω)
Dimension (H x W x D):
(with terminal) 302 x 200 x 278 mm
