Description
Enjoy exquisite video performance thanks to the latest HDMI technologies such as 8K/60Hz pass-through and upscaling, various HDR format support including HDR10, HDR10+, Dolby Vision, Hybrid Log-Gamma (HLG) and Dynamic HDR. Game with better immersion thanks to 4K/120Hz pass-through, Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM).

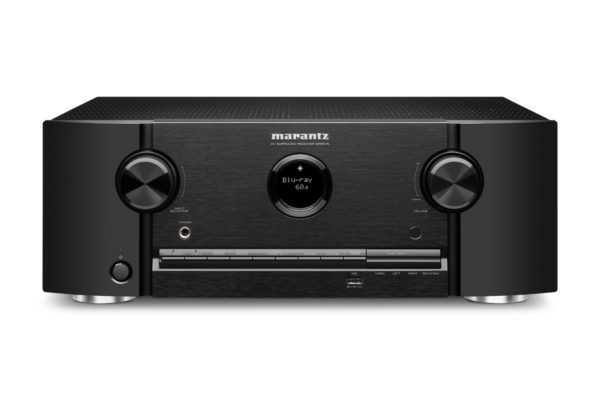

Extensively tuned by world-renowned sound acousticians at the most state-of-the-art facilities, the new Marantz SR5015 leverages decades of experience in Hi-Fi to drive exceptional, audiophile-quality surround sound for all your entertainment.
Key Features:
-
- Performance, power and connectivity to suit your audio preferences: 7.2 channel discrete power amplifier, 180W per channel.
- 8K/60Hz and 4K/120Hz pass-through support for every entertainment need: With the latest technology in HDMI support, enjoy 8K quality video from your 8K source devices or with 8K upscaling from Full HD or 4K sources.
- Support for the most advanced three-dimensional audio formats: Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X and DTS Virtual:X processing are all supported to allow you to listen to immersive, multi-dimensional audio.
- Enhanced Audio Return Channel (eARC) HDMI support: Through the main HDMI output, connect your TV with eARC HDMI support to allow uncompressed and object-based audio formats like Dolby Atmos and DTS:X directly from a smart TV app to your AV receiver.
- The greatest technology for home cinema: Support for the latest HDR formats including HDR10, HDR10+, HLG, Dolby Vision, 4:4:4 colour resolution and BT.2020, as well as Dynamic HDR provides exceptional picture quality for brightness, clarity and contrast.
- Advanced gaming specifications: With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), experience gaming thrills with amazing imaging and reduced lag.
- High-resolution streaming for audiophile approved sound: Play back ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz as well as DSD 2.8MHz and 5.6MHz tracks, and enjoy your music exactly as the artist intended.
- Exclusive components elevate the Marantz sonic signature: Marantz proprietary HDAM circuit boards, Current Feedback circuitry, AKM AK4458 32-bit D/A converters, and Hybrid PLL Clock Jitter Reducer produce more detailed, dynamic sound.
- Almost unlimited music sources: Stream from music services like Spotify Free and Premium, Amazon Music HD, Tidal and more, or stream directly from smart devices via AirPlay 2 or Bluetooth
- Features HEOS Built-in and the free HEOS App: Your key to digital music streaming, multi-room audio and voice control throughout your entire home.
- Supports all your favourite voice assistants: With the SR5015, simply use your voice to control your preferred voice assistant like Amazon Alexa, Google Assistant and Apple Siri.
SPECIFICATIONS
Multichannel surround
DTS HD Master / DTS:X / DTS:X Pro • / • / –
DTS Neo:X / DTS Neural:X – / •
DTS Virtual:X •
IMAX Enhanced –
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization • / • / •
Dolby ProLogic Ilz / Dolby Surround – / •
Auro 3D –
Multichannel Stereo •
Max Number of Processing (Preamp) Channels 7.1
Sound Enhancements
Discrete Power Amplifier 7
Copper Plated Chassis –
Power Transformer: Toroidal / EI EI
Current Feedback Topology •
Hyper Dynamic Amplifier Modules (HDAM) •
Pure Direct •
Gold Plated RCA Terminals –
Clock Jitter Reducer –
Audyssey MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume • / •
Audyssey LFC –
Compressed Audio Enhancer: MDAX2 •
Network
HEOS Multi-room and Streaming •
Bluetooth Re-transmit for Bluetooth headphones •
Amazon Alexa / Google Voice Assistant / Apple HomePod • / • / •
Lossy Formats: MP3 / WMA / AAC • / • / •
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 • / • / •
DSD Audio Streaming • (2.8/5.6MHz)
FLAC HD 192/24 •
Gapless Playback • (FLAC, WAV, ALAC, DSD)
AirPlay Audio Streaming • (AirPlay2)
Internet Radio • (TuneIn)
Spotify • (connect)
Amazon Music HD / Deezer / TIDAL / Napster / others • / • / • / • / varies per region
Compatible with Remote APP for Smart Phones Android / iOS
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Port •
Wi-Fi •
Bluetooth •
HDMI
HDMI Inputs: Back / Front 6 / 0
HDCP2.3 support •
HDMI Outputs: Main / Zone 2 / –
Video Conversion Analogue -> HDMI •
HDMI to HDMI scaling up to 8K 60/50Hz
8K/60Hz / 4K/120Hz / CEC / eARC • / • / • / •
Dolby Vision / HDR10+ / Dynamic HDR / HLG • / • / • / •
ALLM (Auto Low Latency Mode) Pass-through for gaming •
Variable Refresh Rate / Quick Frame Transport / Quick Media Switching • / • / •
HDMI pass-through in Standby Mode •
DSD Audio Capability –
Auto LipSync •
Multiroom / CI
HEOS Multi-Room Integrated •
TV Sound Grouping •
Multi-Room zones 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue • (2ch) / • (2ch) / • / •
Zone Audio Output: Speaker / Preout • / •
Zone HDMI Output from HDMI Source –
IP Control / RS232 Control / Web Control / App Control • / • / • / •
IR Flasher In •
Marantz Remote Bus •
DC Trigger Output 1
HDMI Diagnostics •
Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT
FL Display Port Hole
Graphic User Interface – GUI Advanced
ISF Certification •
GUI Languages 9
Setup Assistant •
Smart Select •
Firmware Update by Network / USB • / •
Variable Cross Over •
Optimized Bass Redirection •
Bass Sync –
ECO Mode •
Auto Power Off •
Sleep Timer •
Video Inputs/Outputs
Composite In / Out 2+1 / 1
Component In / Out 2 / 1
HDMI In / Out 6 / 2
Multi-Room Video Out: Video / HDMI – / –
Audio Inputs/Outputs
Analogue In / Out 4+1 / –
Phono (MM) In •
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: Analogue / Digital 1 / –
Multichannel Pre Out • (7.2)
Subwoofer Out 2
7.1 Multichannel Input –
Other
Speaker Terminal: Gold Plated Screw / Regular Screw – / •
Number of Speaker Terminals 7
Speaker A / B assignable
Bi-Amp Drive assignable
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB • / • / – / – / •
USB Audio •
FM/AM Tuner •
General Power
Number of Poweramps 7
Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) 100 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 140 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive) 180 W
70% Guarantee •
General
Metal Front Panel –
System Remote Control RC042SR
Pre-Programmed / Learnable / LCD Display – / – / –
Power Consumption in W 650
Power Consumption No-Sound (ECO on / off) in W 45 W / 75 W
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W 3.7
Maximum Dimensions in mm
Antenna:Horizontal:(W x D x H)
Antenna:Vertical:(W x D x H)
w/o Antenna:(W x D x H)
440 x 348 x 161
440 x 348 x 231
440 x 338 x 161
Weight in kg 10.1
Carton Maximum Dimensions (W x D x H) in mm 520 x 429 x 243
Carton Weight (incl. product) in kg 12.3
