Arcam A5 Stereo Integrated Amplifier

Description

The “A” in ARCAM stands for Amplification – this is our core competance. The A5 is the latest in more than 45 years of amplifier design and manufacture, going back to our first product in 1976 – the A&R Cambridge A60 amplifier. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound quality.

So you can play music straight out of the box, the ARCAM A5 includes a Bluetooth solution with Qualcomm AptX Adaptive technology. This provides up to 24-bit HD audio for the best sound quality from your phone or tablet, no matter what you are playing. It can also connect to Bluetooth headphones so your listening experience can continue sensitively after dark.

Hi-res audio is included with high resolution digital audio inputs included.

Like any ARCAM integrated amplifier, we pay particular attention to the built in phono stage to ensure your records sound as lush and engaging as possible.

Key Features

• ARCAM Class AB amplification – provides brilliant musicality
• 50W per channel (8?) – powers loudspeakers with ease
• Bluetooth with aptX™Adaptive Technology – for the best sound with the most convenience
• Specially selected components and materials – to deliver on sound quality
• Wired or Wireless Headphones – connect your headphones for quiet listening with, or without wires
• All new Radia design – Purposeful yet playful
• MM phono stage – ready for Turntables
• Hi-Res Digital Audio Inputs
• Plastic Free Packaging – for easy disposal of natural materials

SPECIFICATIONS

CONTINUOUS POWER OUTPUT (0.5% THD), per channel

2 channels driven, 20Hz – 20kHz, 8Ω: 50W
2 channels driven, 1kHz, 4Ω: 75W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.003%

ANALOGUE INPUTS

Number of inputs: 3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB
Frequency response: 20Hz—20kHz ± 0.2dB

PHONO (MM) INPUT

Input impedance: 47kΩ + 100pF
Frequency response (ref. RIAA curve): 20Hz—20kHz ± 1dB

DIGITAL INPUTS

Supported Sample Rates (kHz)
Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1
Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1

Bit depths (bit): 24, 16
Frequency response (filter 1): 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 109dB

HEADPHONE OUTPUT

Maximum output level (RMS) into 32Ω/300Ω: 2.5V/5V
Load range: 16Ω – 2kΩ

GENERAL

Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum): 350W
Power consumption (standby): <0.5W
Dimensions W x D (including speaker terminals) x H (including feet): 431 x 344 x 83mm
Weight (net): 8kg
Weight (packed): 11kg

SUPPLIED ACCESSORIES
Mains lead(s)

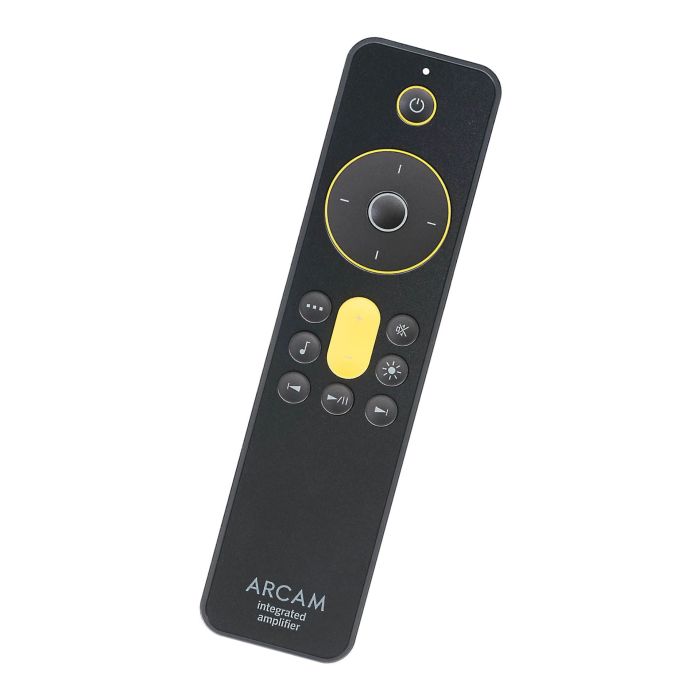

Remote control with 2 x AAA batteries
Quick Start Guide
Important Safety Instructions
