Description

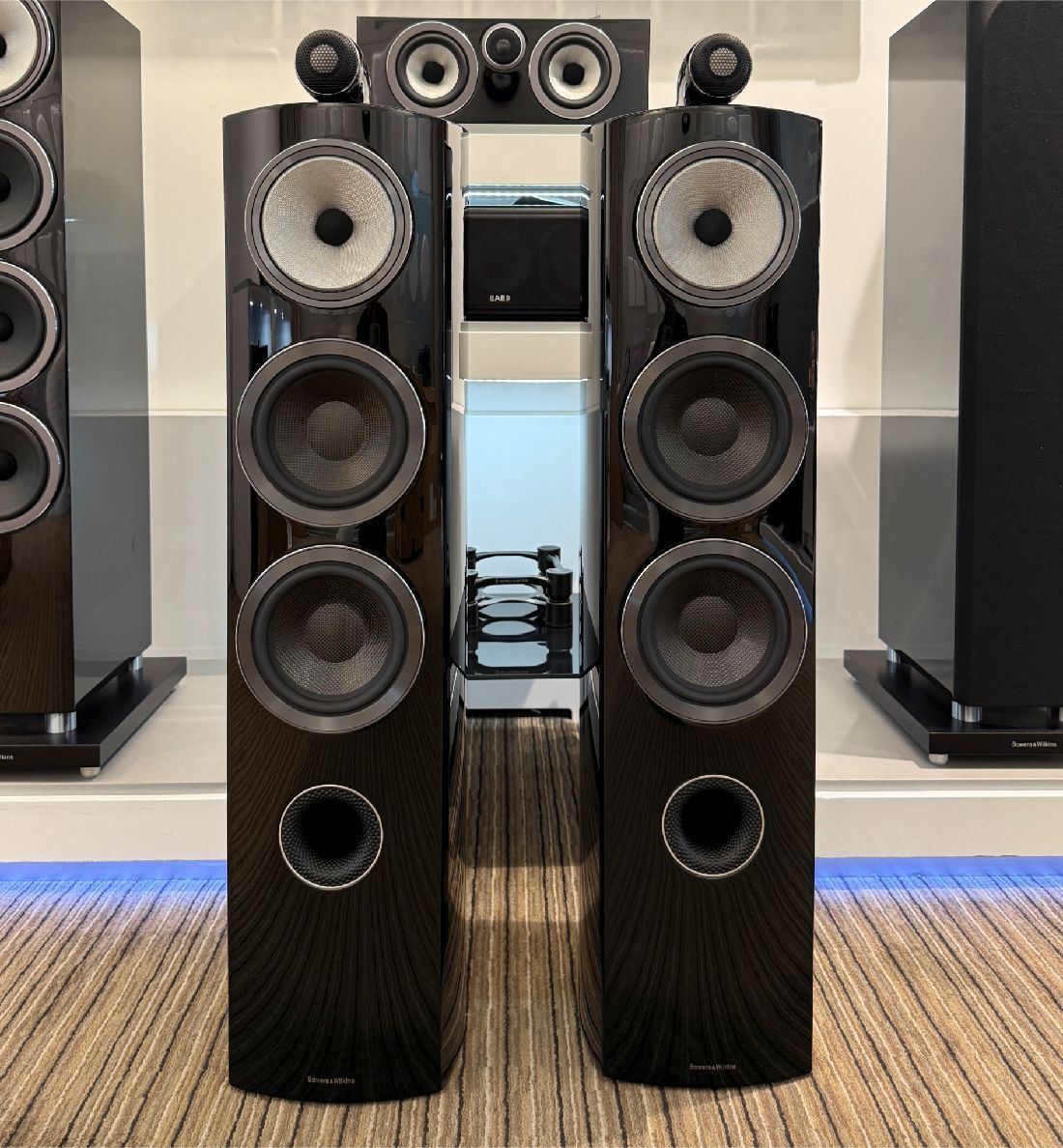

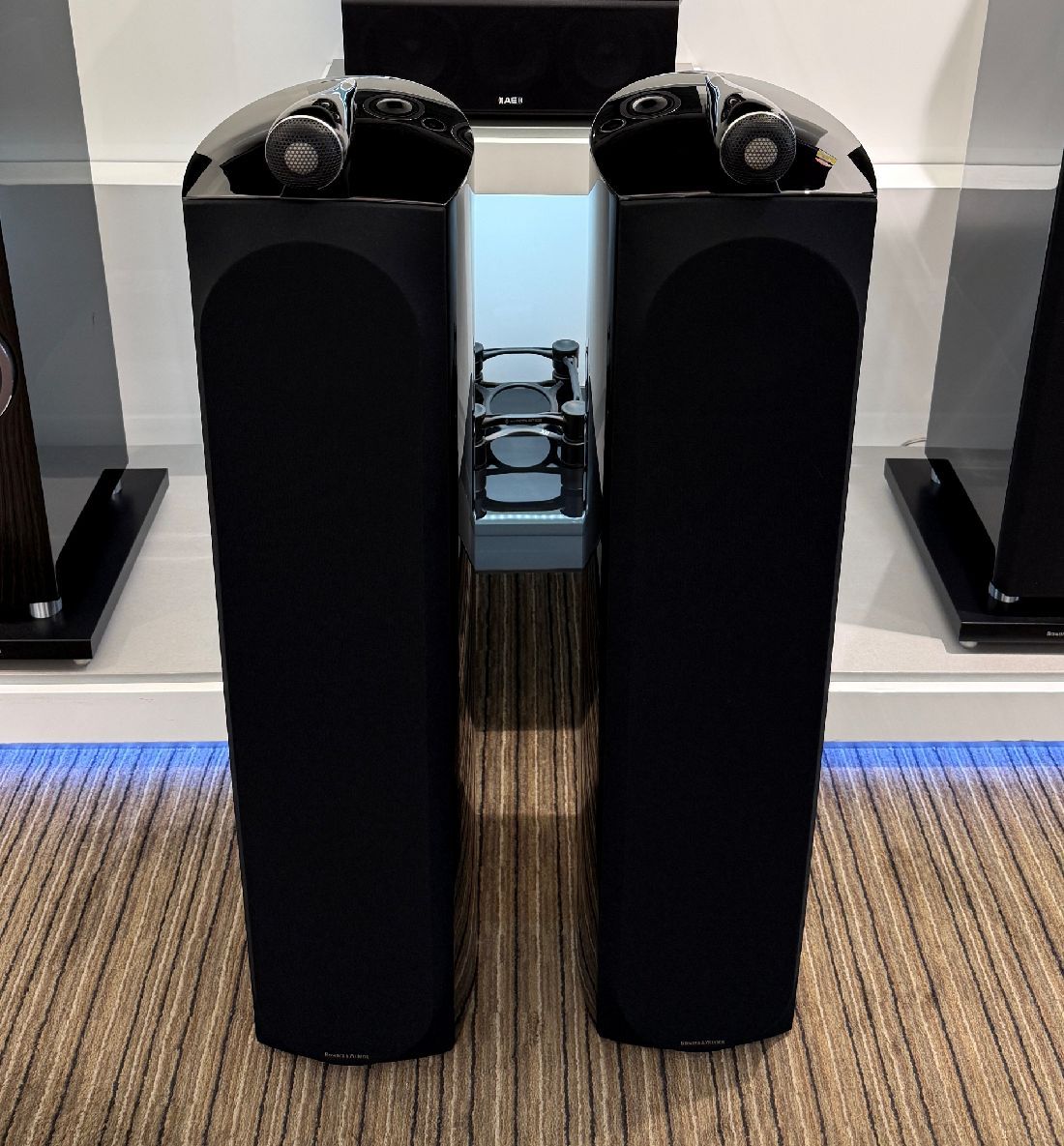

It might have a more traditional appearance than other speakers in the range, but don’t let that fool you. The 804 D3 delivers incredible acoustic transparency, thanks
to unique 800 Series Diamond features such as our Continuum cone and augmented Matrix bracing system. So while its looks may be conventional, its performance is
anything but.
SPECIFICATIONS
Technical Features
Diamond tweeter
Continuum cone FST™
Aerofoil cone bass units
Flowport™
Optimised matrix
Solid body tweeter
Drive units
1x ø25mm (1 in) diamond dome high-frequency
1x ø130mm (5 in) Continuum cone FST™ midrange

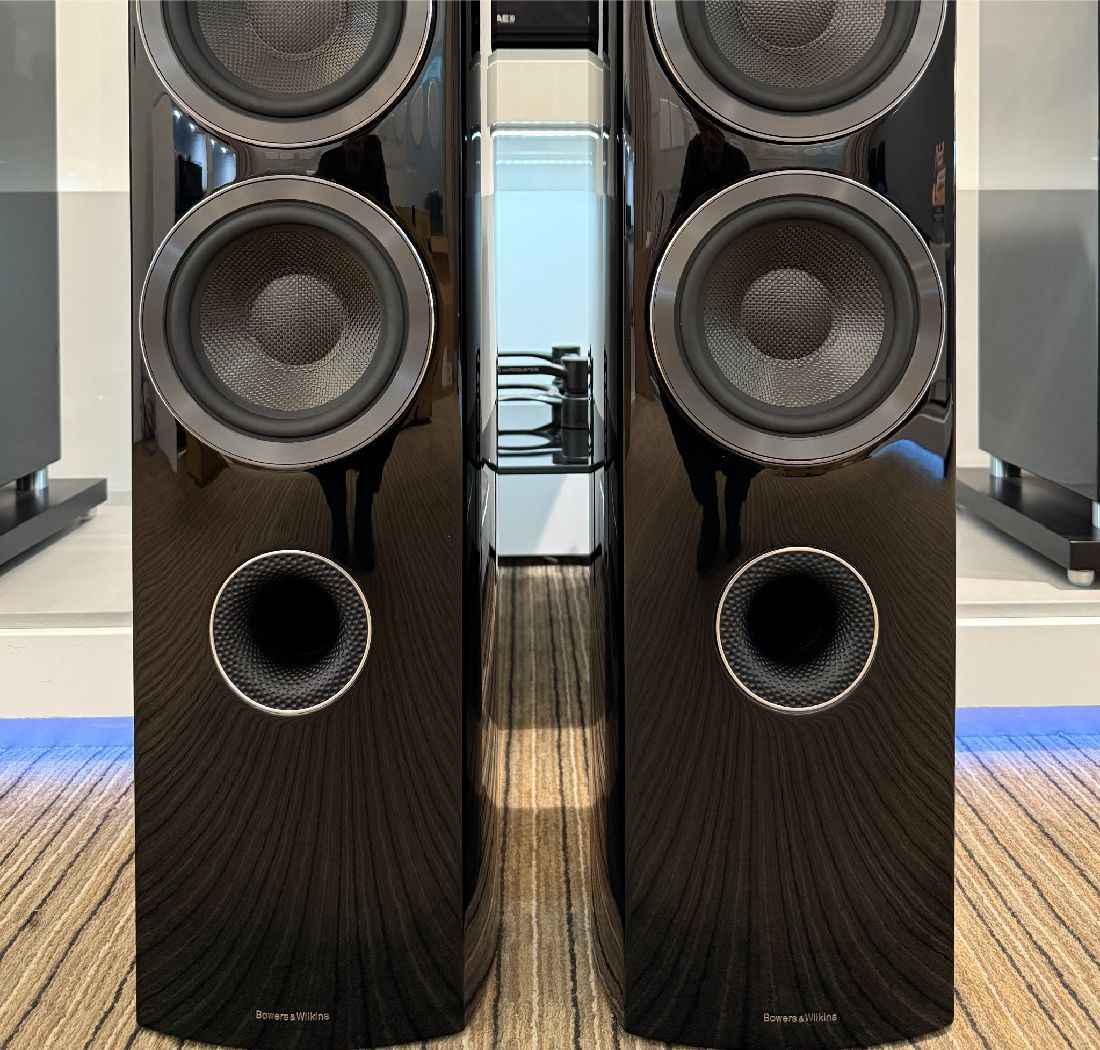

2x ø165mm (6.5 in) Aerofoil cone bass units
Frequency range
20Hz to 35kHz
Frequency response (+/-3dB from reference
axis)
24Hz to 28kHz
Sensitivity
(on axis at 2.83Vrms)
89dB SPL (2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1 % 70Hz – 20kHz
<0.3% 120Hz – 20kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier
power
50W – 200W into 8Ω on unclipped programme
Dimensions
Height: 1019mm
Width: 238mm
Depth: 345mm
Net weight: 33kg (Each)
