Description

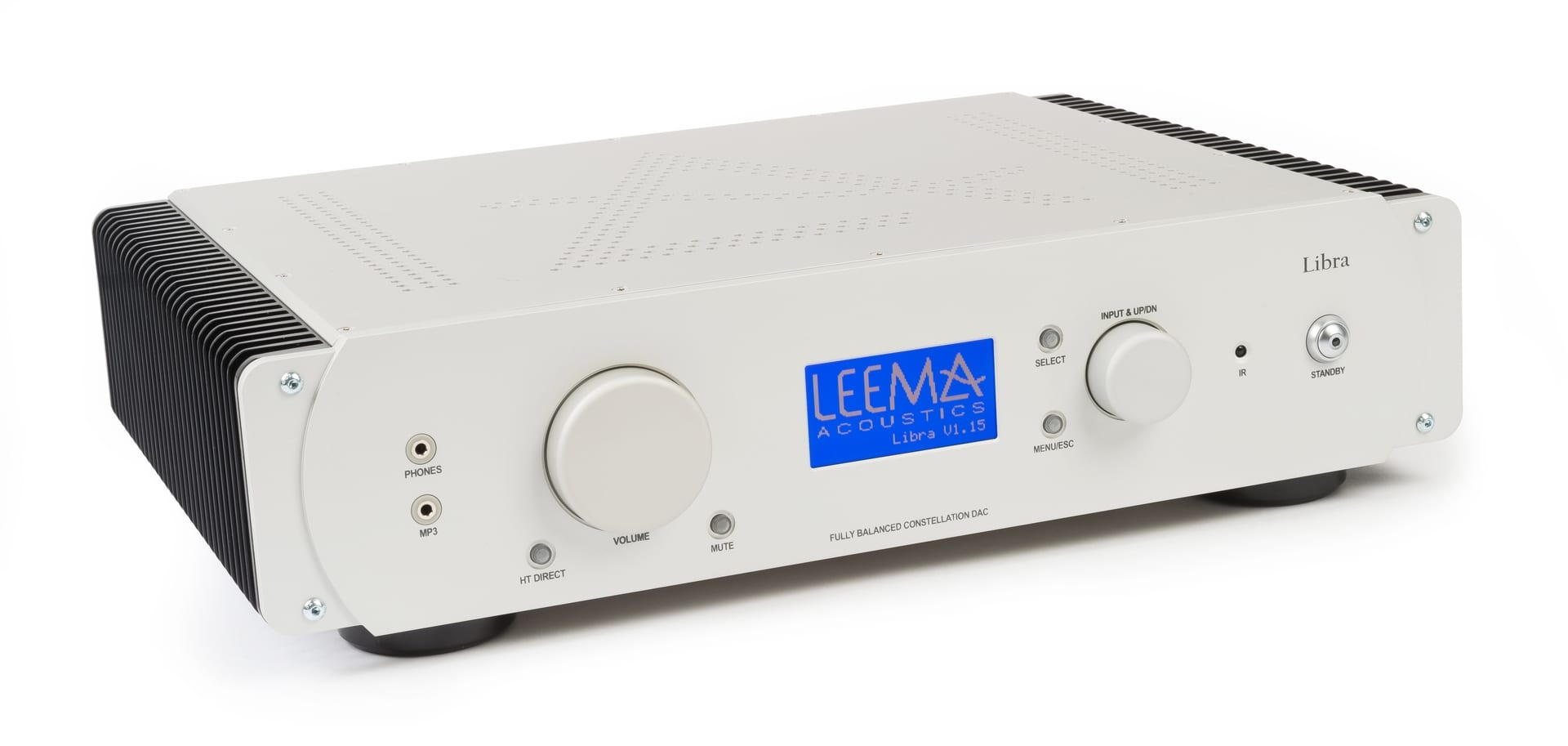

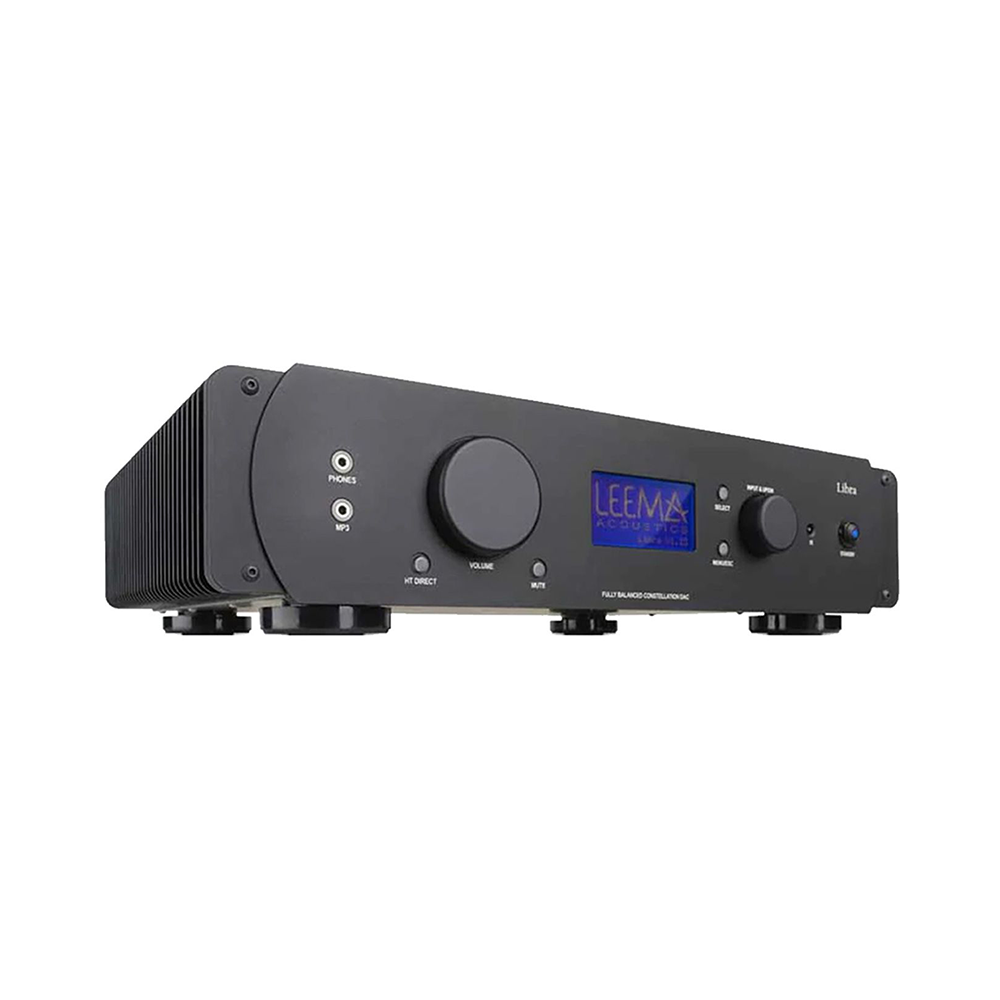

The Libra is both analogue pre-amplifier and world class Digital to Analogue converter feature Leema own in house DAC topology known as Quarto Infinity.
Within this technical tour de force analogue signals importantly remain in the analogue domain ensuring absolutely quietness and maximized dynamic range.
Beneath its elegant exterior lies a wealth of cutting edge technologies, plus an impressive array of input options including coaxial, optical, I2S, and AES/EBU connections, ensuring compatibility with various high-end sources.
The class-leading M1 USB module delivers pristine computer audio playback with minimal jitter, while upgrades now support DSD64, DSD128, DXD, and 384kHz resolutions.
Featuring fully balanced Quattro Infinity dual-mono DAC modules, the Libra offers user-selectable output filter bandwidth and field-replaceable modules for future-proofing.
With analogue inputs configurable for unbalanced or balanced connections and a Bluetooth interface for wireless playback convenience, the Libra exemplifies versatility.
The Libra serves as a high-end pre-amplifier with analogue volume control and a full LIPS controller, seamlessly integrating with Leema’s power amplifiers for unparalleled audio performance.
SPECIFICATIONS
DAC type
Leema Acoustics Quattro Infinity balanced multi DAC topology
Analogue inputs
X 3 configurable as Balanced (XLR) or Un-Balanced (RCA)
S/PDIF coaxial inputs
X 3 (24 bit 192kHz & DSD64)
S/PDIF optical inputs
X 3 (24 bit 192kHz & DSD64)
AES/EBU inputs
x 2 via XLR connectors (24 bit 192kHz & DSD64)
Asynchronous USB
Yes (24 bit 384kHz, DXD, DSD64 & DSD128)
I2S inputs
X 2 via RJ45 connectors (24 bit 384kHz, DXD, DSD64 & DSD128)
One I2S Input has fully programmable pin allocation
Headphone amplifier
Yes (high quality)
Bluetooth interface
Yes
Output (fixed or variable preamp)
1 x XLR true balanced, 1 x Single ended RCA
Dimensions
440(W) x 320(D) x 110mm(H)
