Description
COMPLETE INSTALLATION

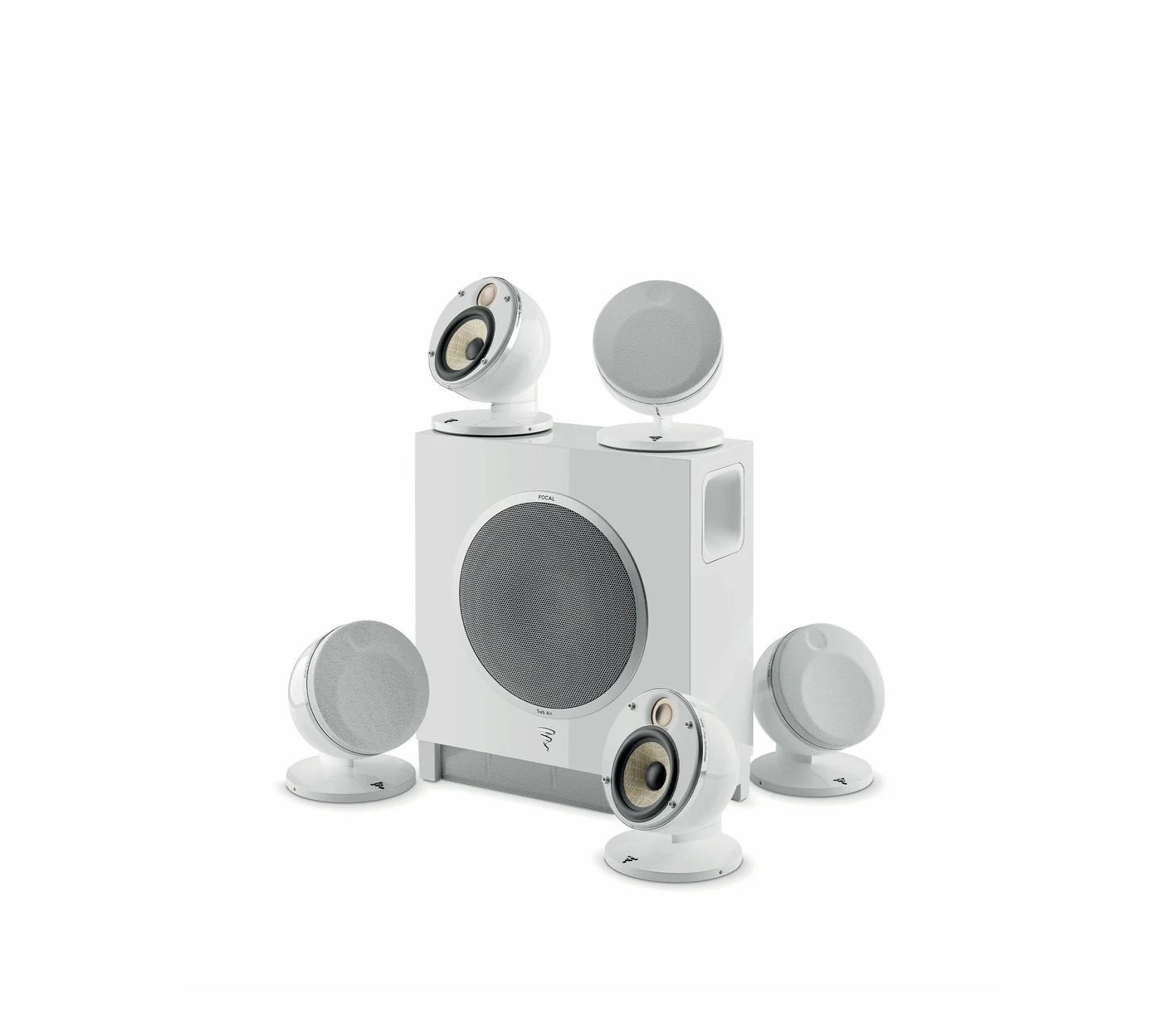

The five 2-way Dôme Flax satellite loudspeakers are combined with Sub Air. Thanks to its wireless system, this subwoofer frees you from all cable constraints, delivering deep, intense sound. The package will deliver all its performance in rooms of 30 to 40 m2 for musical and cinematic emotions.
OPTIMAL INTEGRATION
Free-standing, wall-mounted, ceiling-mounted or placed on a piece of furniture, these loudspeakers blend easily into any room, thanks to their compact size (just 14 cm in diameter) and elegant, timeless black or white lacquer finishes.
SOUND SPOT
The Dôme loudspeakers have a clean, soft design, with a totally smooth, round shape and no visible screws when the cover is fitted. Conceived as an adjustable spotlight, the Dôme is an ideal, discreet sound source for any interior.
SPECIFICATIONS

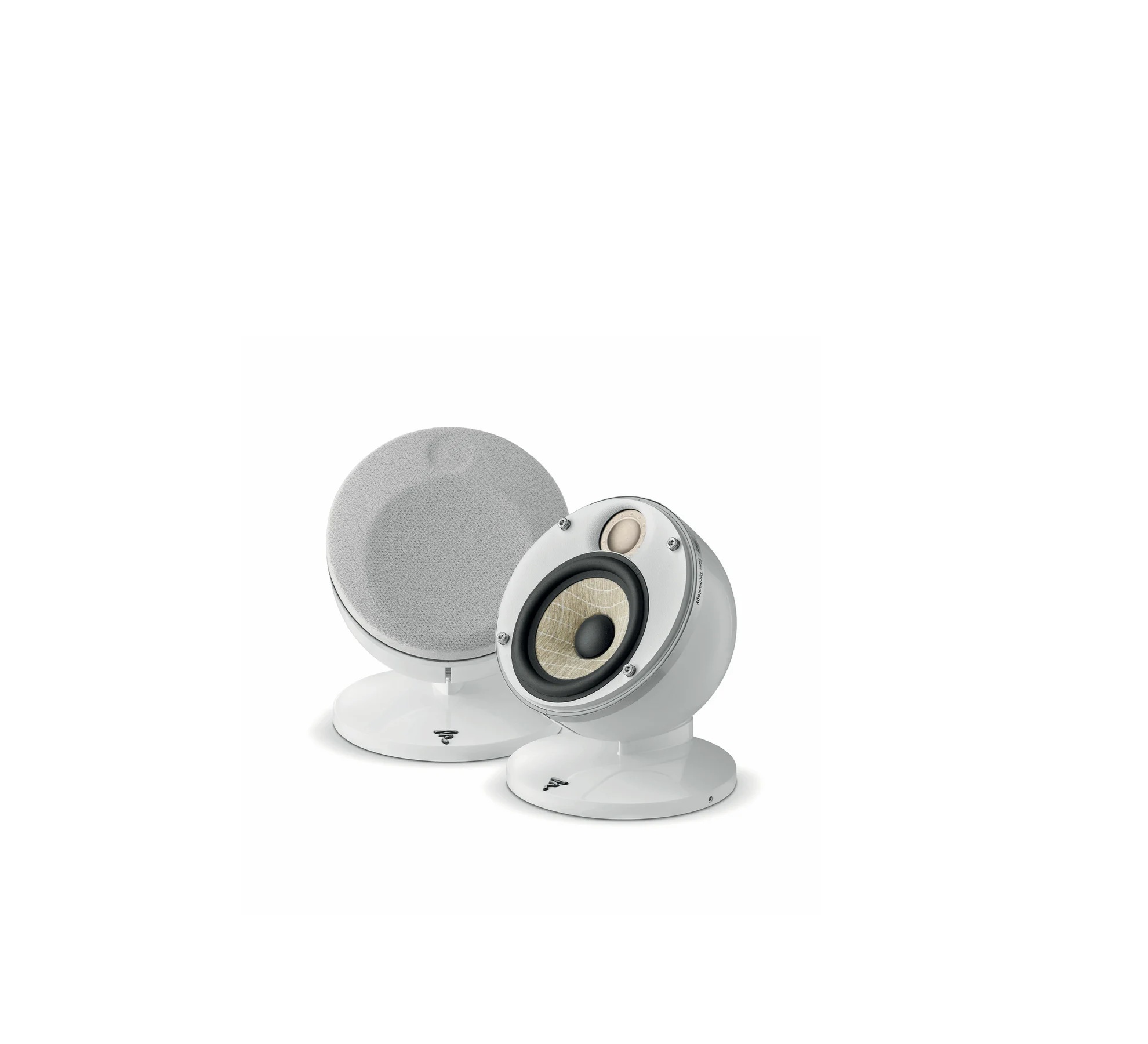

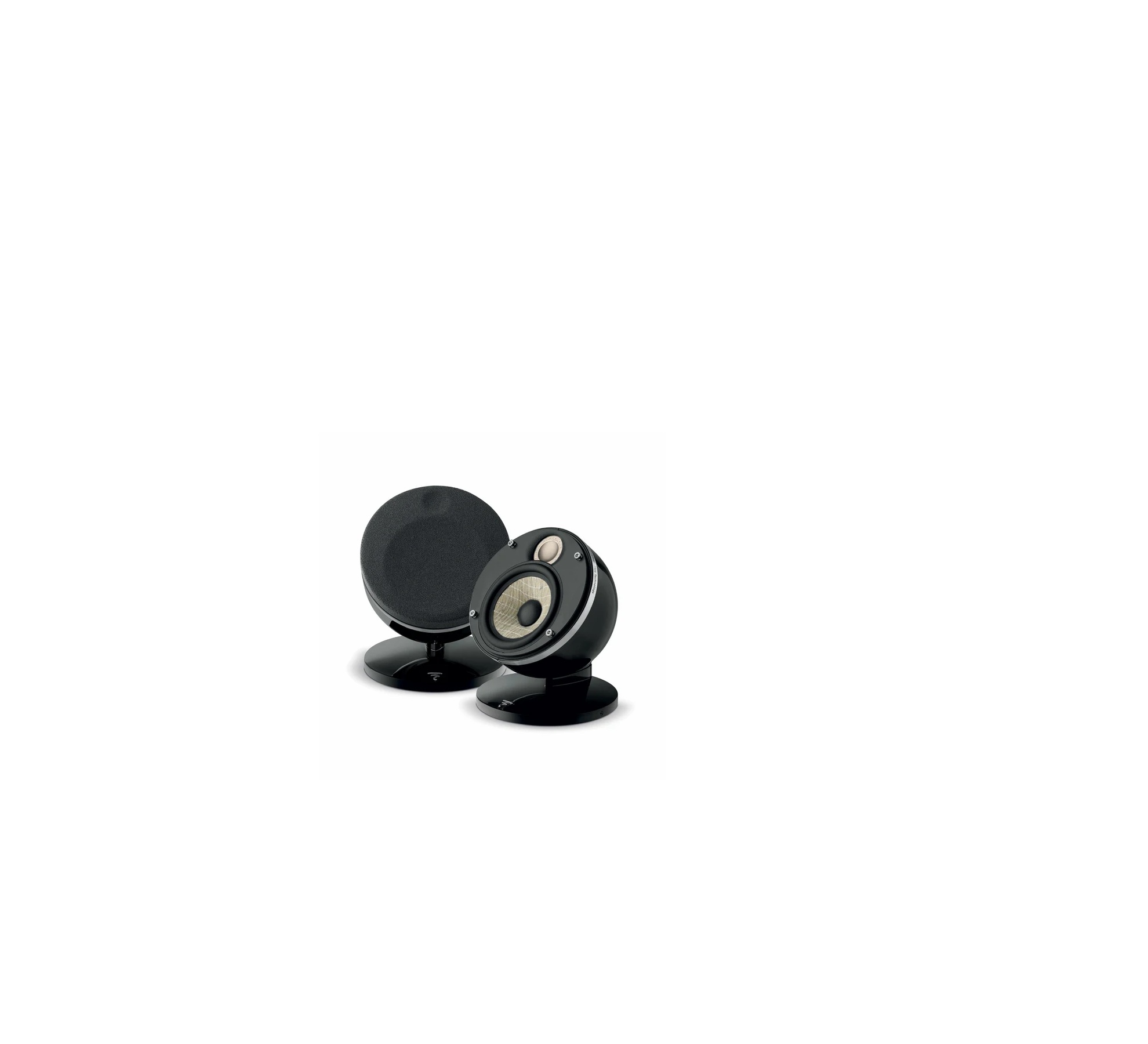

DOME FLAX SATELLITE
Type 2-way compact sealed speaker
Drivers 4″ (10cm) Flax mid-bass
1″ (25mm) Al/Mg inverted dome tweeter
Frequency response (±3dB) 80Hz – 28kHz
Low frequency point (-6dB) 72Hz
Sensitivity (2.83V/1m) 88dB
Nominal impedance 8 Ohms
Minimum impedance 4 Ohms
Crossover frequency 2500Hz
Recommended amplifier power 25 – 100W
Dimensions (HxWxD) 63/4×511/16×55/8″ (172x144x143mm)
Net weight 1,9 kg

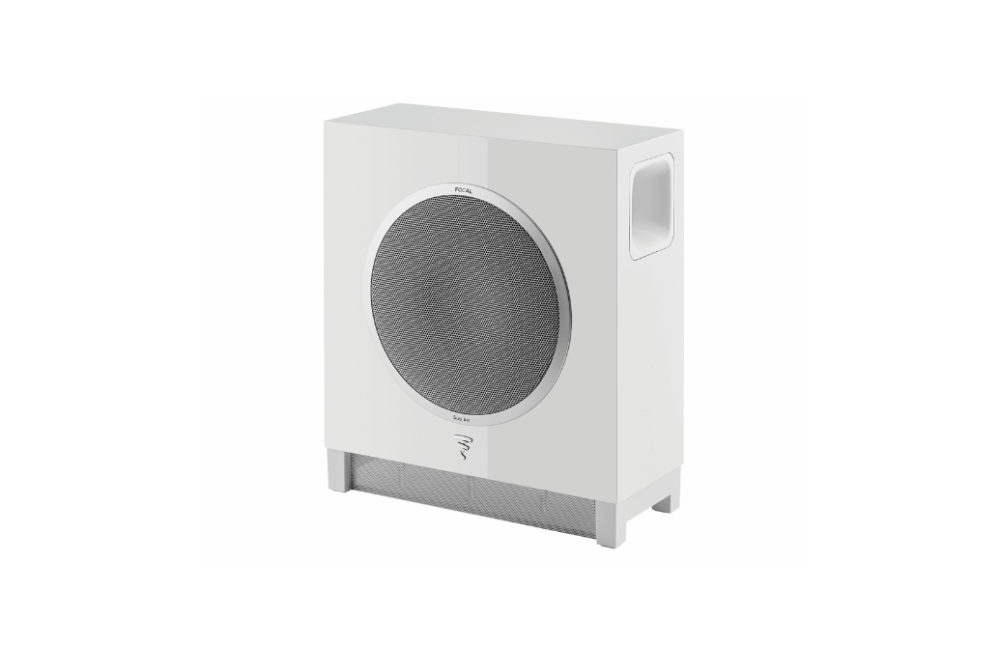

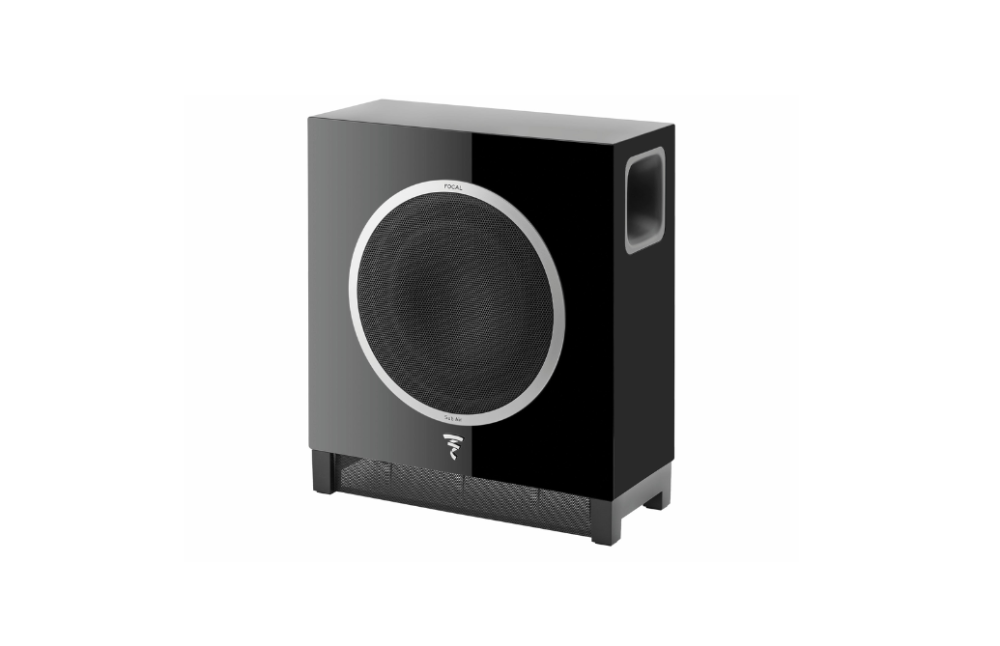

SUB AIR SUBWOOFER
Speaker driver (diameter) 8″ (21cm)
Bass cutoff frequency (-6dB) 35Hz
Frequency response (+/- 3dB) 40Hz-200Hz
Crossover cutoff frequency variable 50 Hz – 200 Hz

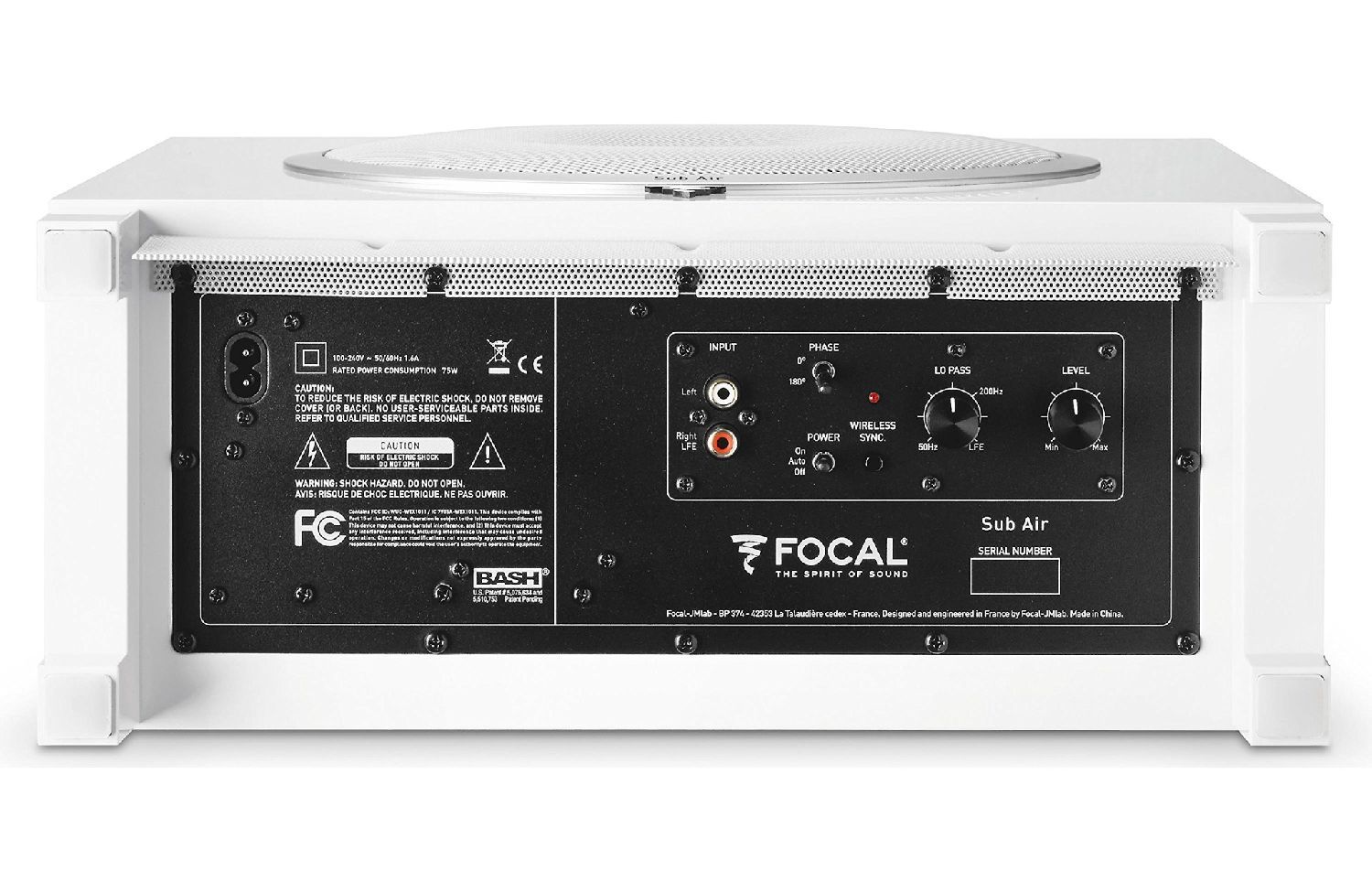

Input panel Left Right / LFE
Continuous power output 110 W
Peak power 150 W
Phase adjustment 0 – 180° switch
Power functions ON Auto (1 W) OFF (0,5 W)
Dimensions (HxWxD) 16.1″x14.2″x6.3″ (410mmx360mmx160mm)
Weight 17 lbs (7,65 Kg)
Range in Meter 15 meters (in a room)
Sound Sampling 16 bits
Sampling Frequency 44,1kHz
Coding delay (latency) 13ms
Radio transmission powers or sensitivity 0dBm
Radio transmission frequency band 2,4Ghz ISM band
