Description
Adopting a strong chassis structure that follows the T-1000 design

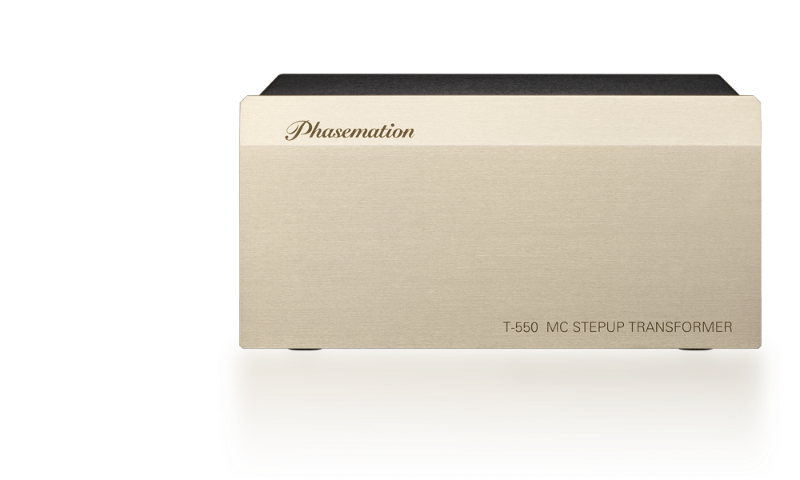

The front panel is a rigid box structure having a 10mm thick slanted aluminum panel, a 1.2mm thick copper plating board chassis, and a 1.6mm thick copper plating cover. Non-magnetic stainless steel screws are used for assembly to ensure rigidity and reduce magnetic distortion.
In addition, the transformer itself is floating on the main unit with a high damping rubber material and prevents the transmission of external vibrations.
Also electrically speaking, by placing a magnetic shield material near the transformer can bring about the reduction of external induction hums and magnetic distortion.
SPECIFICATIONS
Best Cartridge’s Output Impedance*1: 1.5 – 40 ohms
Load Impedance: 47k ohms
Gain: 26dB
Frequency Range: 10 – 50kHz (+2dB)
Dimensions: W: 174 x H: 90 x D: 173
Weight: 2.1kg

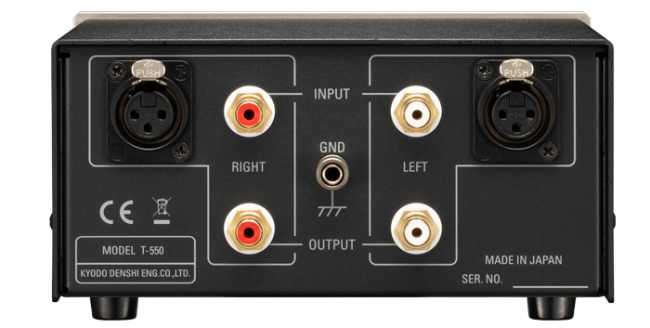

Input / Output Terminals: (XLR, RCA) Gold Plated Terminals
*1: The cartridge that can be used has an output impedance of 1.5 – 40 ohms.
