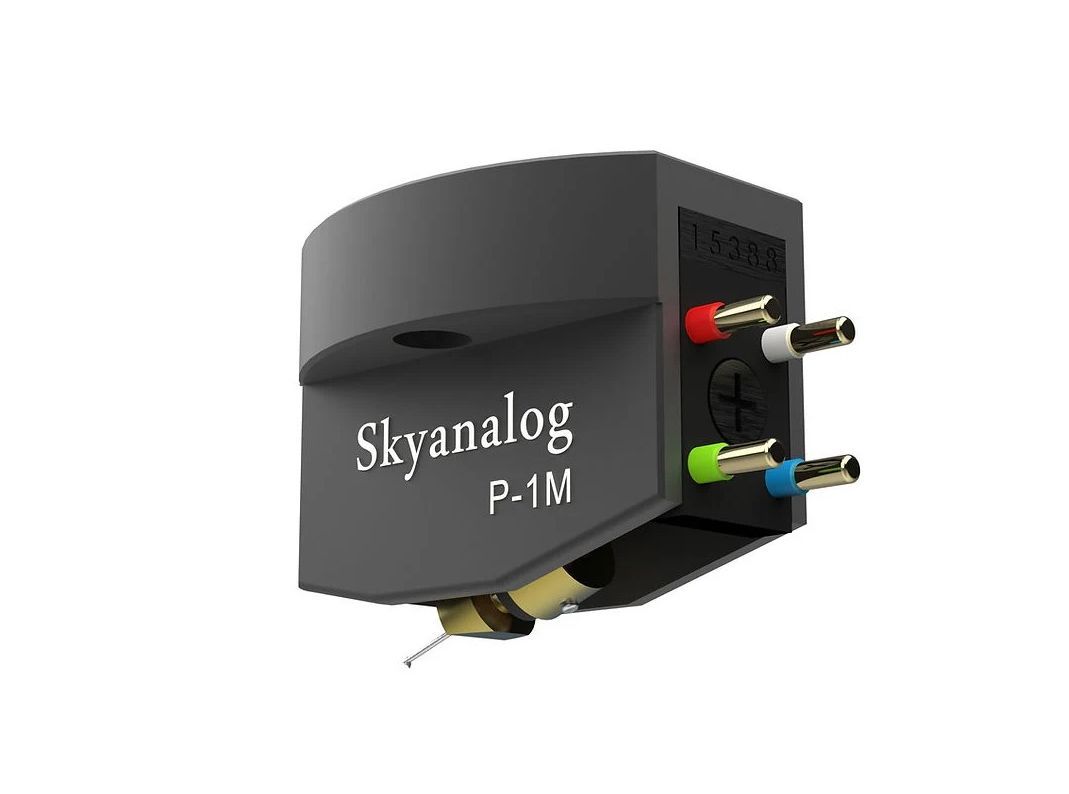

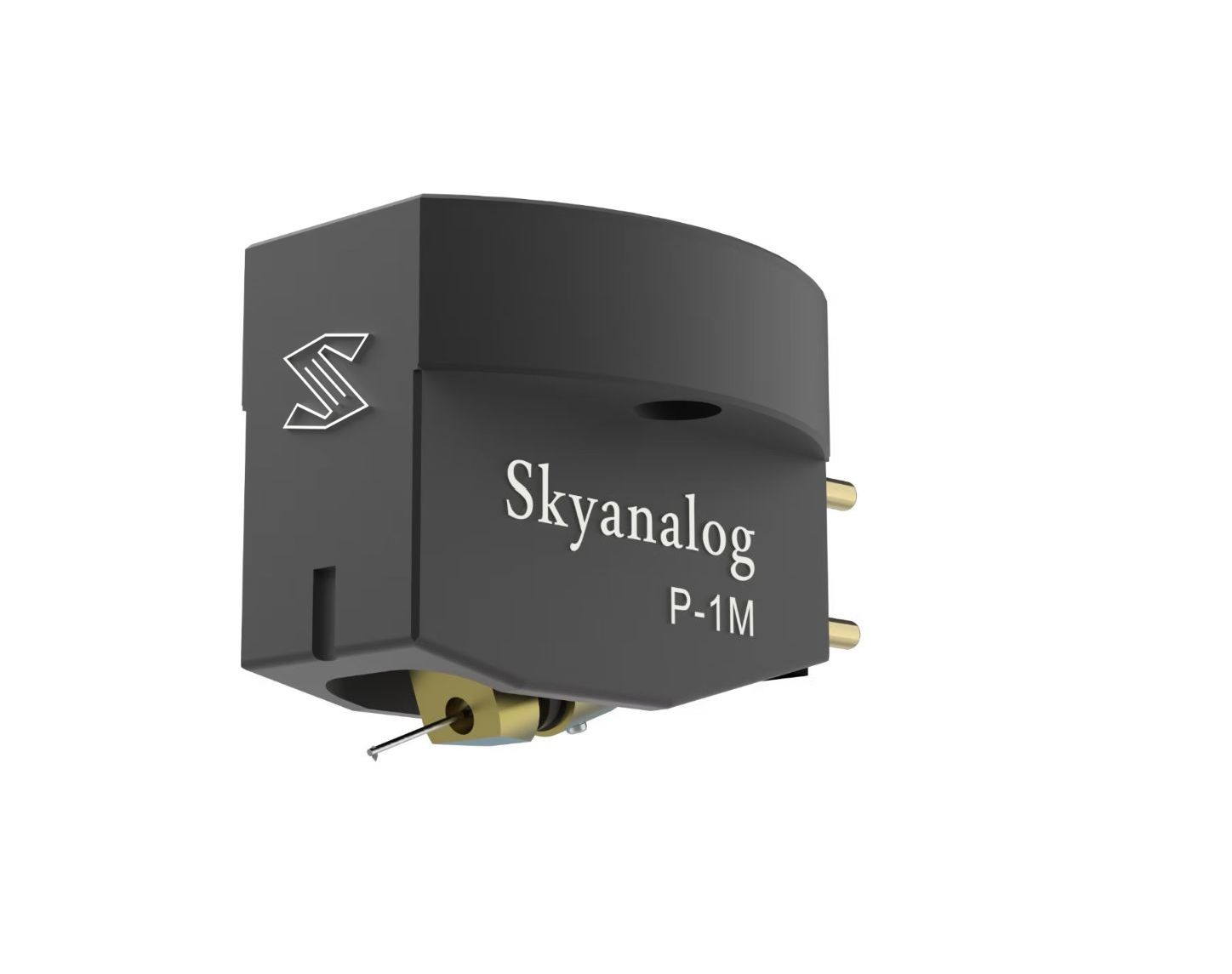

Skyanalog P-1M Moving Coil Phono Cartridge

Description

The P-1M features a low-mass boron cantilever paired with a micro-ridge diamond stylus, enabling excellent tracking and enhanced detail retrieval from vinyl records. This combination ensures minimal distortion and a highly detailed, transparent soundstage, allowing listeners to enjoy a broad dynamic range and deep, accurate bass. Its midrange is smooth and well-balanced, while the treble extends with precision, making it ideal for those who seek a natural and immersive listening experience.

Skyanalog’s attention to detail and focus on craftsmanship is evident in the P-1M’s performance. The cartridge is designed to provide a nuanced and lifelike sound, ideal for audiophiles who demand top-tier performance from their analog setups.

SPECIFICATIONS

Cantilever
Aluminium

Stylus
Elliptical

Stylus type radius
5x250uM

VTA
20 degrees

Coil
Pure iron square coil

Weight
10 grams

Output voltage
0.4mV AT 3.54cm/s

Internal impedance
4 ohms

Frequency response
20-20,000Hz +/-2dB

Channel separation
Better than 30db at 1KHz

Channel balance
Better than 1 dB

Tracking ability at 315 Hz at optimum tracking force
70uM

Dynamic compliance
12uMmN

Recommended loading
100-200 OHMS

Recommended tracking force
1.1 – 1.4 grams

Optimum tracking force
1.35 grams

Recommended tonearm mass
medium

Optimum working temperature
23 C

Break-in period
30 hours
