Description
Full discrete non-NFB circuit
An extremely simple configuration, consisting merely of a power amplifier with a selector and volume control, is identical to that of SOULNOTE‘s flagship integrated amplifier A-3.
Single push-pull output stage using TO-220 transistors
The final output stage employs TO-220 transistors with low Cob and high-frequency characteristics in a single push-pull configuration. This is a high-end amplifier prioritizing quality, achievable only by limiting maximum output to 10W
Four-stage Darlington circuit
Delivering a maximum output of 10W while employing the same four-stage Darlington configuration as A-1 ver.2 and A-2 ver.2. Even at low volumes, it demonstrates drive capability, producing air pressure changes.
Newly developed bias circuit
A newly developed bias circuit is adopted. S/N has been dramatically improved.
Enhanced pre-out function
For the pre-out output, a powerful High mode is selectable, which outputs the loudspeaker output signal directly. A Low mode is also selectable, where the output is attenuated for easier handling.
When selecting the pre-amplifier, a mode has been applied that outputs the loudspeaker output signal. A mode that cuts off the loudspeaker output is also selectable.

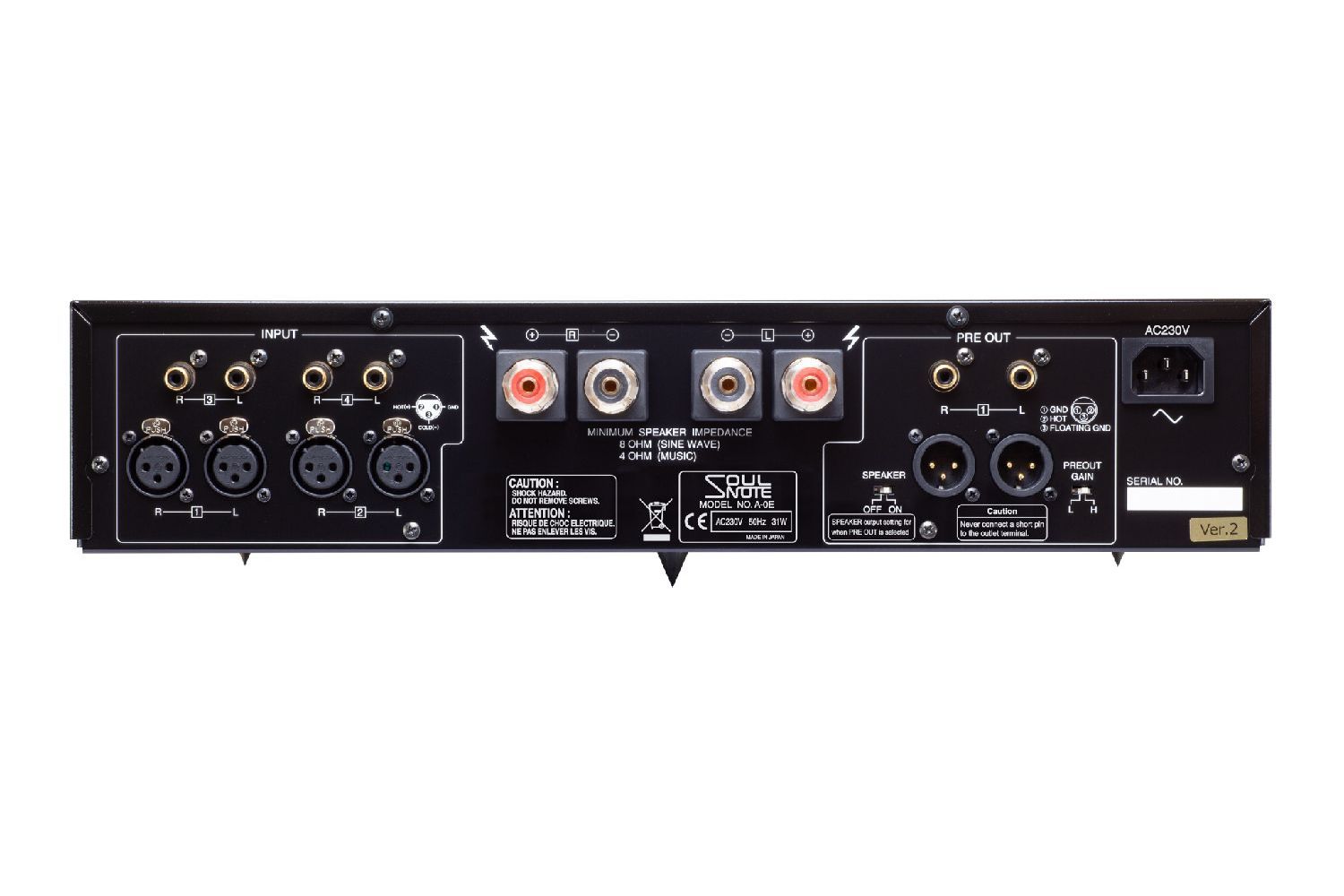

The pre-out terminals feature both RCA and XLR connectors. The XLR terminals are configured as: [1] GND [2] HotA [3] Floating GND, enabling the noise-cancelling benefits inherent to balanced connections. Using SOULNOTE non-shielded balanced cables such as RBC-1 allows the pre-amplifier to deliver its maximum potential.

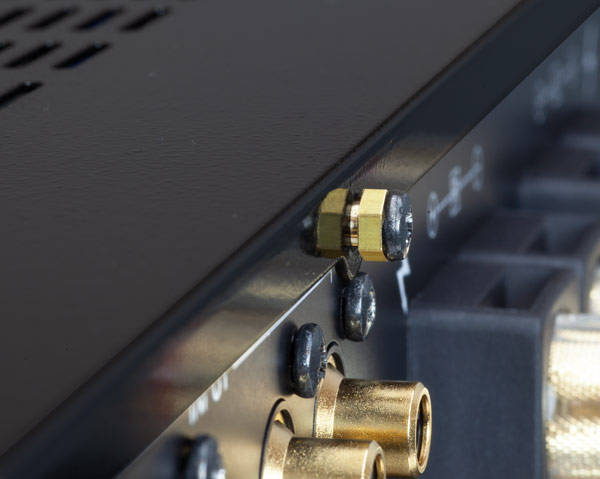

Non-fixed top cover
The top cover is not fixed. This achieves a natural sound field and a sense of openness.

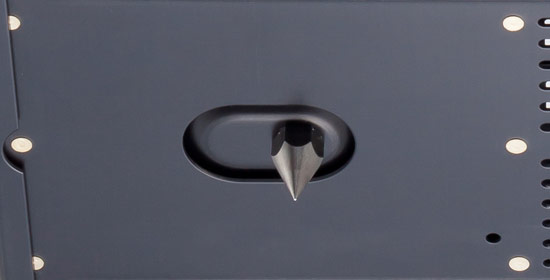

Direct mechanical grounding construction
By positioning a foot directly beneath the transformer, its vibration is released directly outside the chassis. Furthermore, employing a three-point support system via spike feet eliminates sound muddiness caused by chassis damping, achieving a vibrant and soulful sound.
SPECIFICATIONS
Output Speaker: 10W x 2 (8Ω), Headphone: 3.0W x 2 (32Ω), Pre-out: 2.0V
Total Harmonic Distortion Speaker: 0.2% (10Hz-100kHz 3.3W 8Ω), Headphone: 0.03% (10Hz-100kHz 200mW 32Ω), Pre-out: 0.01% (10Hz-100kHz 2V 10kΩ)
Frequency Response Speaker (8Ω 1W): 5Hz-350kHz (+0/-1dB), Headphone (32Ω 200mW): 5Hz-400kHz (+0/-1dB), Pre-out (10kΩ 2V): 5Hz-400kHz (+0/-1dB)
Input Sensitivity/Impedance LINE1,2: 0.66V/10kΩ(H), 4.0V/50kΩ(L), LINE3,4: 0.66V/5kΩ(H), 4.2V/25kΩ(L)
Total Gain: H: 22dB, L: 8dB
S/N Ratio: 115dB (IHF A Network)
Power Consumption: 31W (J60065), 20W (Idling)
Maximum External Dimensions: Main Unit: 430(W)×109(H)×418(D)mm
Weight: 8.0kg
