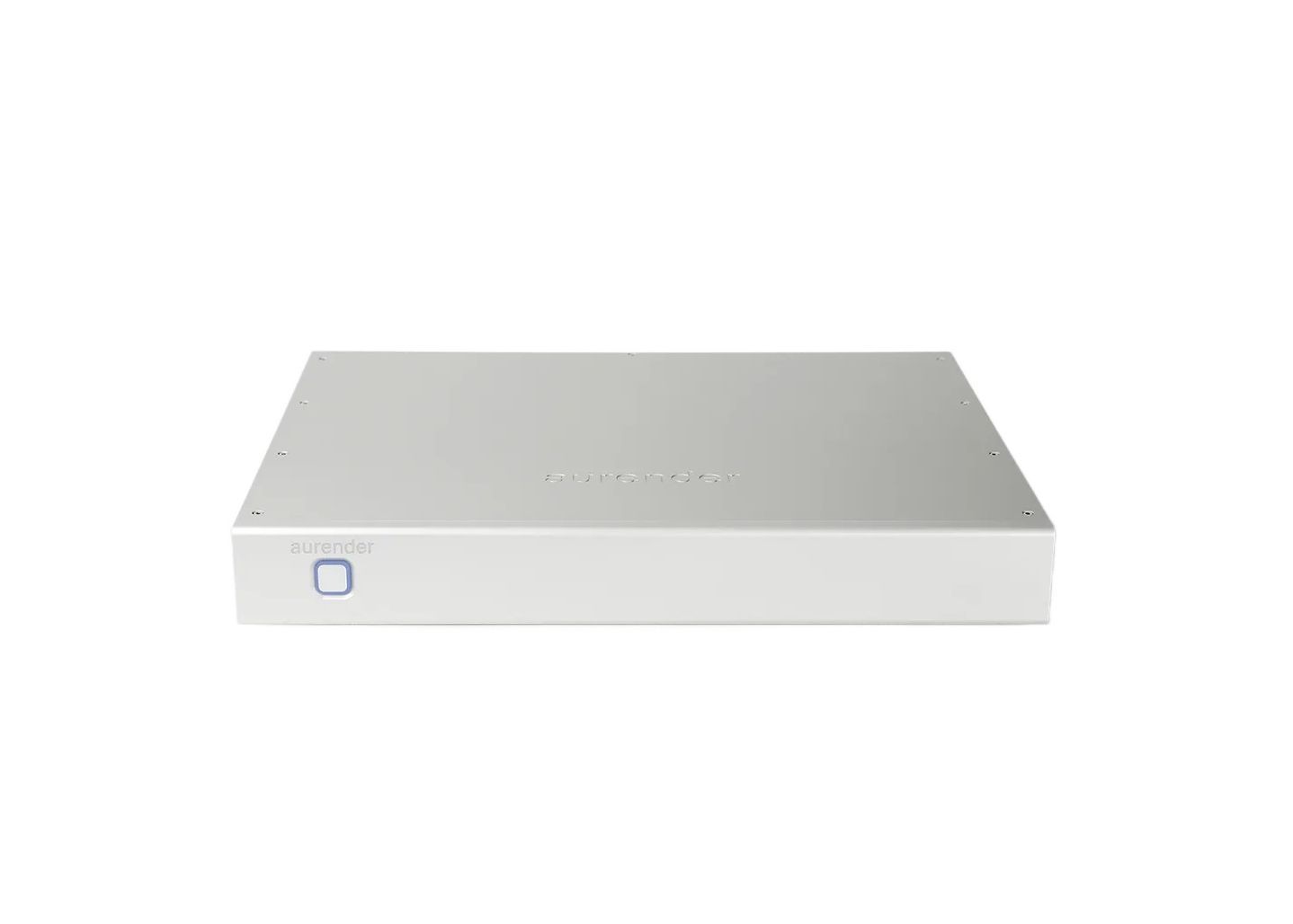

Aurender NH10 Network Hub

Description

Exceptional Jitter Reduction
At its core, the NH10 features an ultra-stable OCXO (Oven-Controlled Crystal Oscillator) with frequency stability rated at <0.005 ppm. Controlled by FPGA synchronization, all internal operations are aligned to a single master clock, eliminating timing discrepancies. For even greater precision, a BNC master clock input (10 MHz, 50 ohm) allows integration with external reference clocks. Outstanding Noise Suppression
The NH10’s precision-machined aluminum chassis shields against vibration and electrical interference, ensuring a quiet and stable operating environment.
An LED OFF switch further reduces noise from port activity indicators.

Pure Linear Power Supply
Every circuit within the NH10 is powered exclusively by linear regulation—without noisy DC-to-DC converters. This approach provides exceptionally clean power delivery, surpassing many competing products and minimizing power-related distortions at the source.

Comprehensive Galvanic Isolation
Each RJ-45 port incorporates advanced filtering for signal purity, while optically isolated SFP ports provide complete galvanic isolation. This eliminates electrical coupling between devices and ensures uncompromised data transmission.

Premium Build Quality
The robust aluminum chassis not only enhances durability but also contributes to acoustic performance, providing a solid foundation for uncompromised sound quality.

SPECIFICATIONS

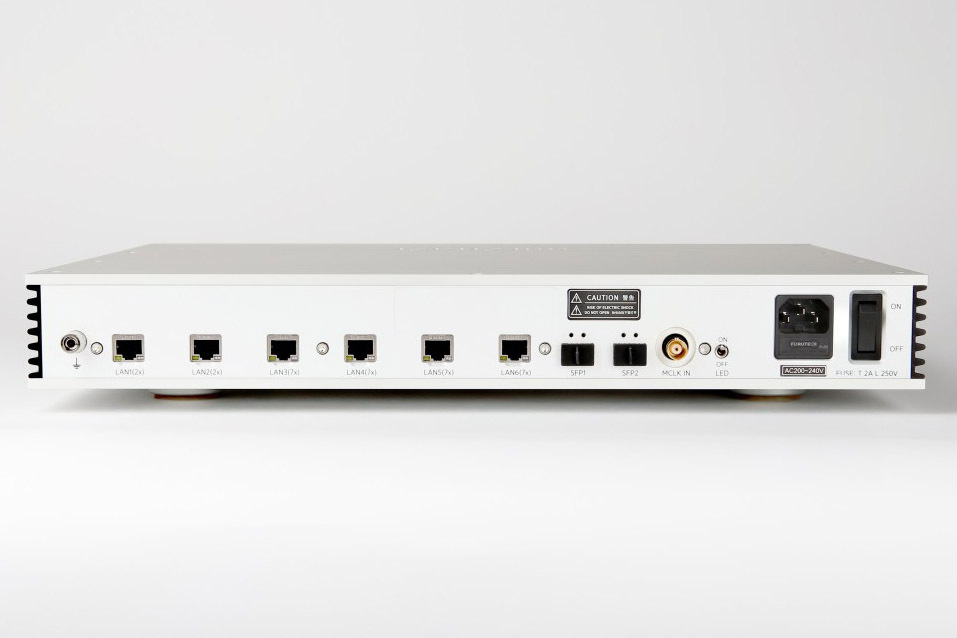

Standards Compliance: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z
Data Transfer Rate: LAN1-6 : 100Mbps/1000Mbps, SFP1-SFP2 : 100Mbps/1000Mbps
Number of Port(Filter): LAN Ports : LAN1-2(2x), LAN3-LAN6(7x), SFP Ports : 2
Connector Type: RJ-45 8pin, SFP
Transmission Distance: 100m(Max)
LED On/Off: Toggle Switch
OCXO Spec: Frequency Stability : < 0.005ppm Master Clock In Spec: 10MHz, 0.7Vrms, BNC(50ohm)
Input Voltage: 110V / 220V (Fuse: 2A, 5mm x 20mm, Slow-blow)
Operating Temperature: 10°C to 35°C
Size:
430 x 355 x 56 mm (unit only), With Foot(68 mm)
16.9 x 14.0 x 2.2 inch (unit only) With Foot(2.7 inch)
Weight: 8.0kg(17.6lbs)
Power Consumption:
Stand by : 3.1W
Power On : Start Warm-up 26W(Max)
State Lock: 20W(Max)
