Description
Now in its third generation, the M10 V3 brings together streaming, digital-to-analogue conversion, and amplification into a single, cohesive system, designed to preserve the detail and sense of space within a recording. Each stage of the audio path is developed to work together, allowing music to flow with greater clarity and a more natural, lifelike presentation. With an upgraded ESS Sabre DAC, a dedicated phono input, and support for Dirac Live, the M10 V3 adapts to both your system and your listening environment. BluOS enables high-resolution streaming through the BluOS Controller App, giving you access to your music with control and consistency.
Includes Dirac Live® Limited Bandwidth licence and calibration microphone for room correction up to 500Hz.
KEY FEATURES
- 100W per channel HybridDigital™ nCore amplifier for precise control and stable performance
- Enhanced ESS Sabre 32-bit/768kHz DAC for greater resolution and low-level detail
- Includes Dirac Live® Limited Bandwidth licence and calibration microphone for room correction up to 500Hz
- Supports Dirac Live® Bass Control with optional licence purchase for advanced subwoofer optimisation
- Two independent subwoofer outputs with adjustable crossover for smoother low-frequency integration
- Dedicated MM phono input with low-noise design and accurate RIAA equalisation

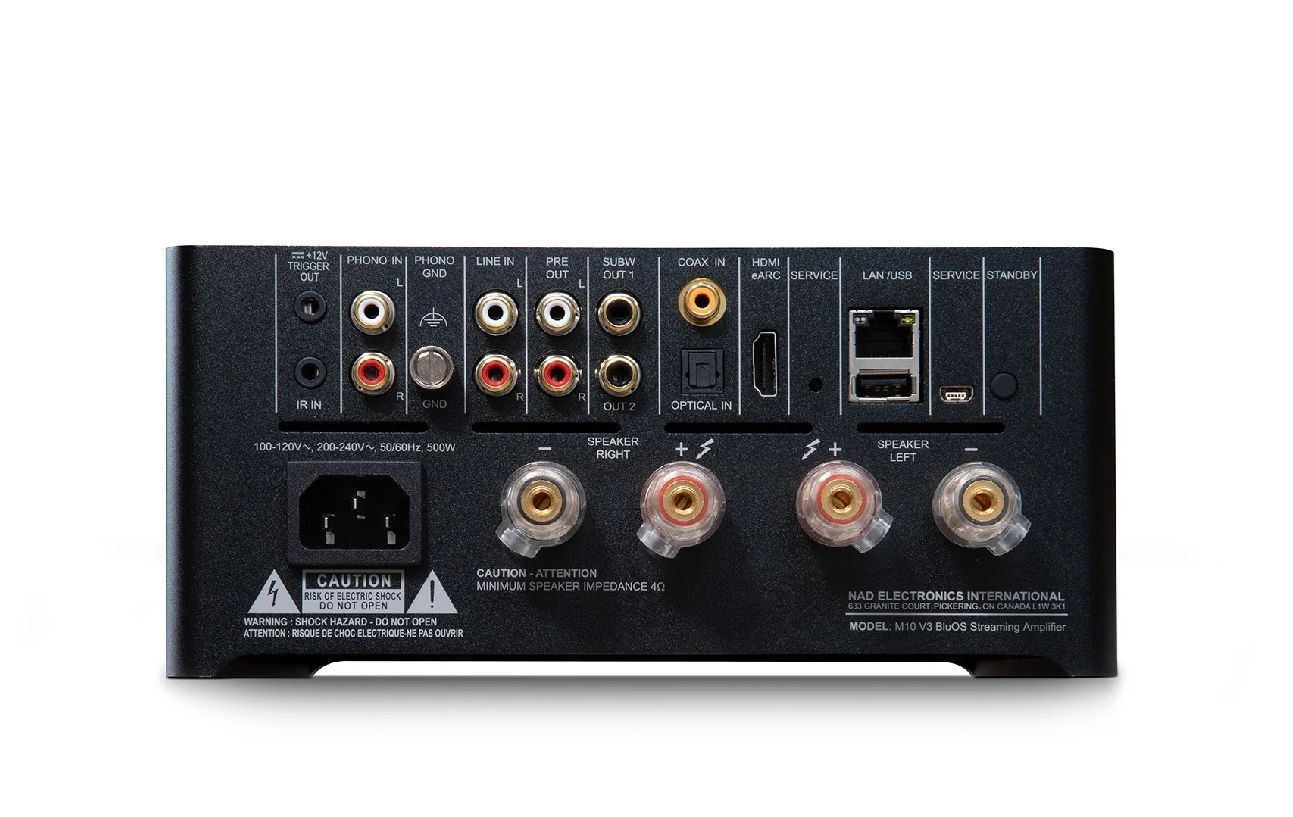

- HDMI eARC, coaxial, optical, USB-A, stereo analogue inputs, and aptX HD Bluetooth connectivity
- BluOS multi-room platform supporting up to 63 zones with high-resolution streaming

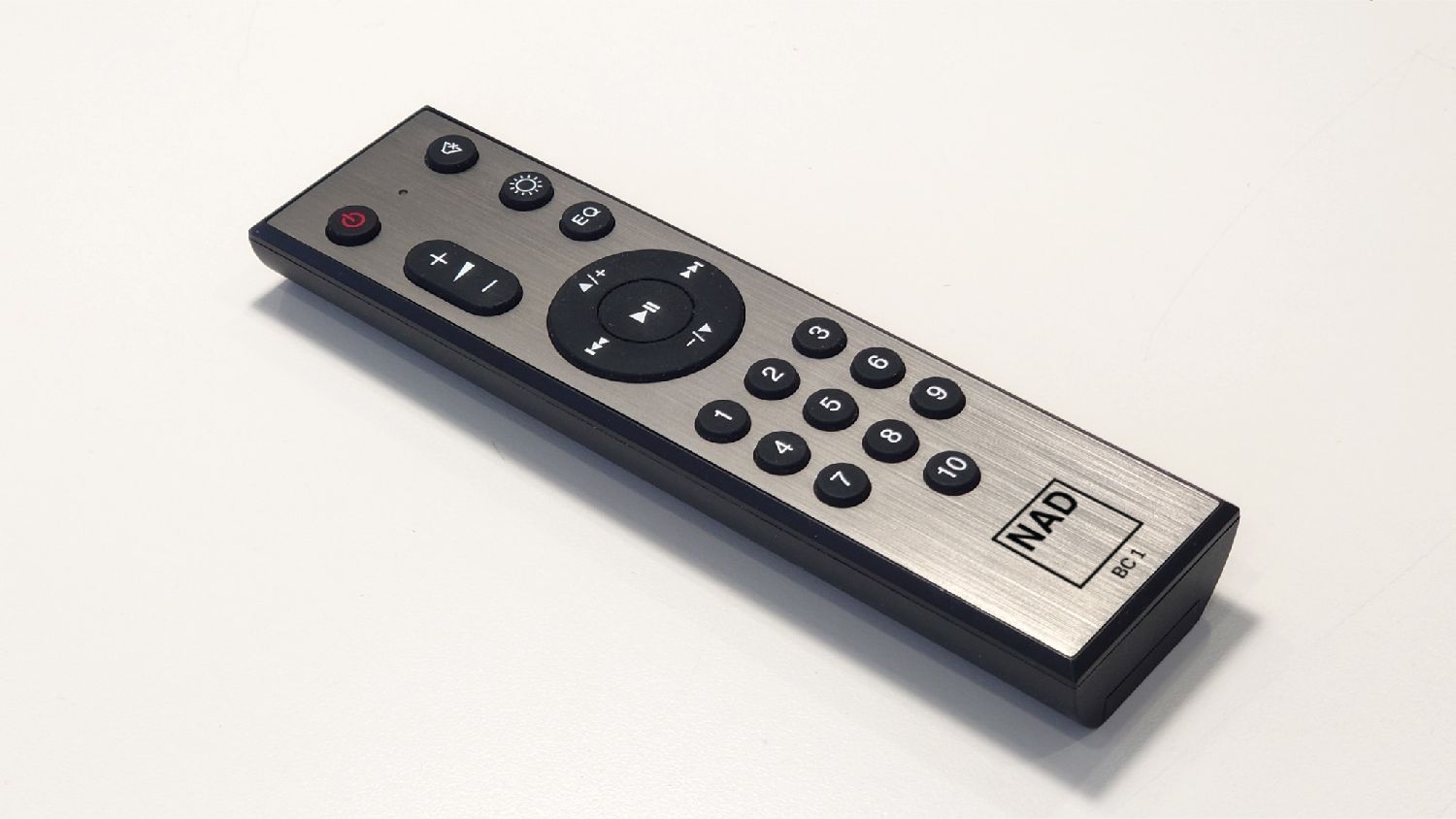

- Control via BluOS Controller App, touchscreen display, or included BC1 IR remote
GENERAL SPECIFICATIONS
Continuous output power into 8 ohms and 4 ohms: >100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
THD (20 Hz – 20 kHz): <0.03 % (250 mW to 100 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio: >85.1 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power: >130 W (at 1 kHz 8 ohms 0.1 % THD) >230 W (at 1 kHz 4 ohms 0.1 % THD)
IHF dynamic power: 8 ohms: 160 W 4 ohms: 300 W
Damping factor: >190 (ref. 8 ohms, 20Hz to 6.5kHz)
Frequency response: ±0.6 dB (20 Hz – 20 kHz)
Tone controls: Treble: ±6.0 dB at 20 kHz Bass: ±6.0dB at 60 Hz
Channel separation: >83 dB (1 kHz) >70.5 dB (10 kHz)
Input sensitivity (for 100 W in 8 ohms): Line In: 456 mV Digital In: -13.23 %FS
Standby power: 0.5W
DAC SECTION
Supported audio file formats: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
Hi-Resolution audio formats: MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)
Sampling rate: up to 24 bit/192 kHz
BluOS SECTION
Supported operating systems: Plays music from network shares on the following desktop operating systems: Microsoft Operating Systems and Mac OS X versions
User interface mobile operating system BluOS: BluOS – Free Android and iOS App available online at Google Play and Apple App store
Supported cloud services*: Amazon Music Ultra HD, Spotify (also support for Spotify Lossless), Tidal Max, Deezer, Qobuz, Qobuz Connect, HDtracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs
Free internet radio*: TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
Bluetooth quality: Bluetooth aptX HD built-in
Bluetooth connectivity: Two-Way (Receive and Headphone modes)
Network connectivity: Gigabit Ethernet RJ45, Wi-Fi 5
DIMENSIONS AND WEIGHT
Gross dimensions: 215 x 100 x 260 mm 8 1/2 x 3 15/16 x 10 1/4 inches
Shipping weight: 5 kg (11 lbs)
