Description
The RA-1572MKII Integrated Amplifier is an essential component for music lovers leveraging the best of Rotel’s analog and digital
technologies bringing music to life with exceptional fidelity. The role of an integrated amplifier continues to evolve with the
RA-1572MKII optimized in every aspect including the power amplifier delivering 120 Watts of robust Class AB output into 8
ohms, audio circuit design innovations, premium audiophileDigital to Analog Converter and a full complement of source inputs.

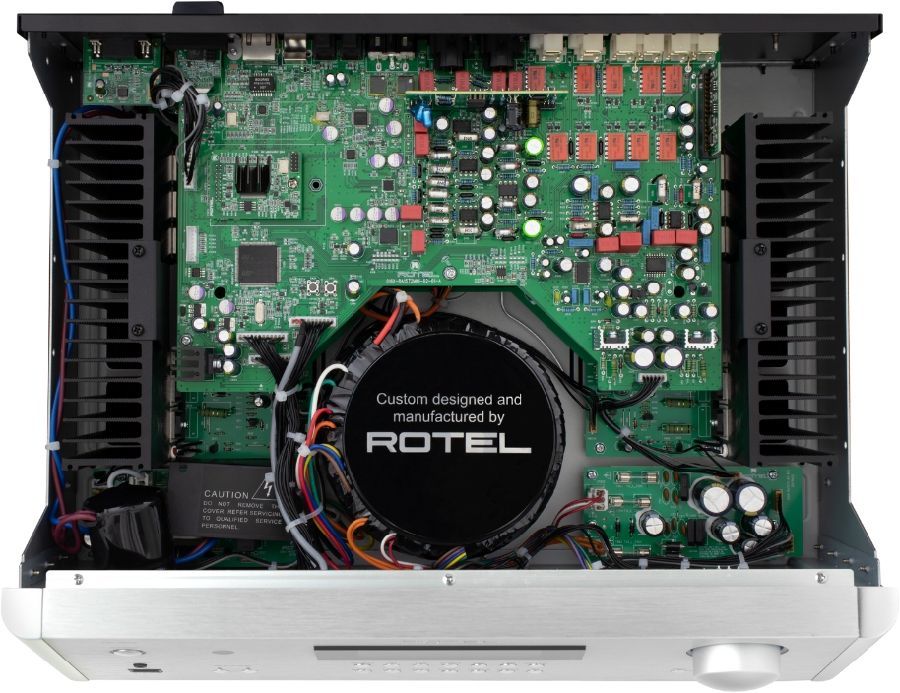

As typical of Rotel amplifiers, the RA-1572MKII utilizes an in-house manufactured oversized toroidal transformer. The
toroidal transformer’s shape helps prevent stray radiation patterns from corrupting audio signals as they pass through
adjacent circuits. The transformer feeds a bank of 4 low ESR, high efficiency, T-Network slit-foil storage capacitors for deep,
controlled bass energy.
The RA-1572MKII support digital sources utilizing a Texas Instruments 32-bit/384kHz DAC with critically tuned output filter
circuits rendering even the most subtle detail. The preamplifier circuits and linear amplifier gain stages have been custom
engineered ensuring natural detail, agility and an immersive soundstage. Analog, digital, PC-USB supporting MQA, aptX™ and
AAC wireless Bluetooth streaming, XLR Balanced and Moving Magnet Phono stage inputs ensures connection to your favorite sources.
The RA-1572MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

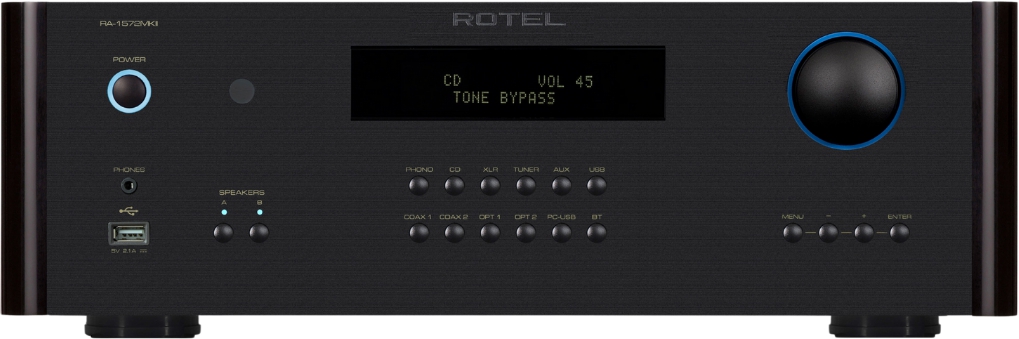

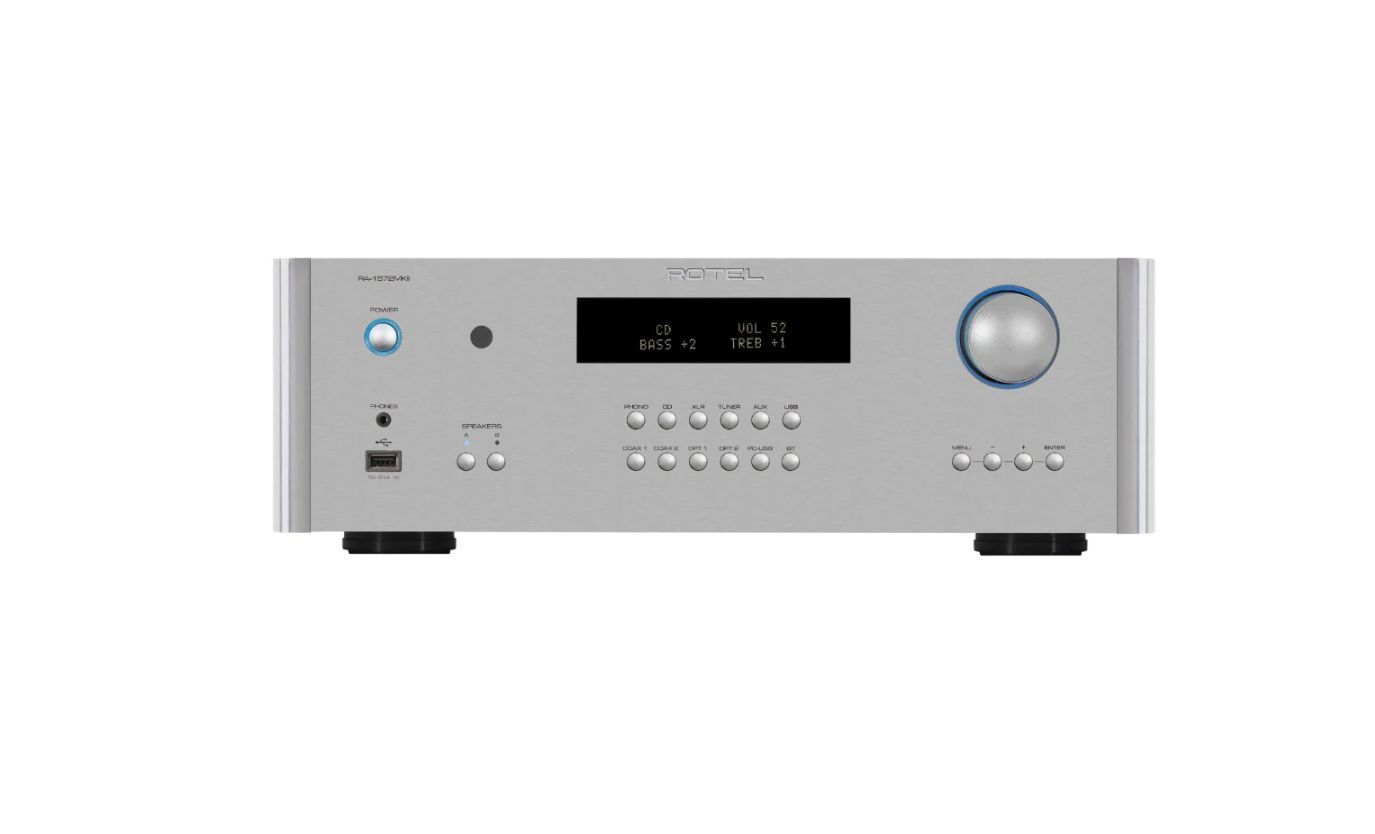

The front panel includes a status display, source and volume controls, Speaker A-B selection for Zone 2, and 3.5mm headphone jack.

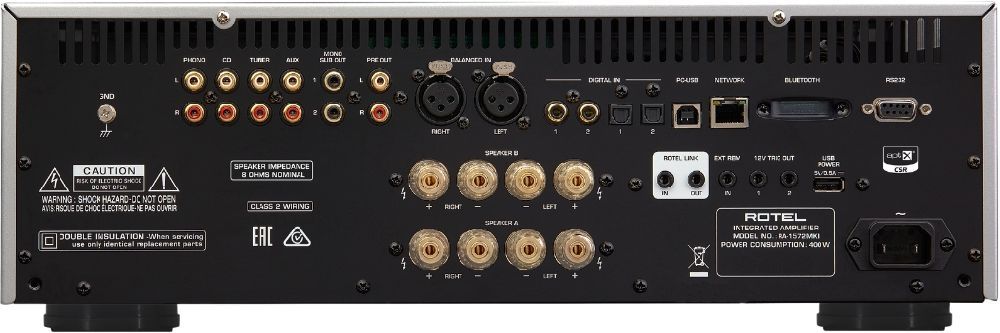

Ethernet and RS232 connections allow seamless integration with control systems and software updates.
SPECIFICATIONS
ANALOGUE SECTION
Maximum Power Output: 200 watts/channel, 4 ohms
Continuous Power Output: 120 watts/channel, 8 ohms
Total Harmonic Distortion: < 0.018%
Intermodulation Distortion: < 0.03%
(60 Hz : 7k Hz, 4:1)
Frequency Response:
Phono Input 20 Hz – 20k Hz, 0 ± 0.5 dB
Line Level Inputs 10 Hz – 100k Hz, 0 ± 0.5 dB
Damping Factor (20 Hz – 20k Hz, 8 ohms): 300
Input Sensitivity / Impedance
Phono Input (MM) 2.1 mV / 47k ohms
Line Level Inputs (RCA) 270 mV / 100k ohms
Line Level Inputs (XLR) 440 mV / 100k ohms
Input Overload
Phono Input (MM) 32 mV
Line Level Inputs (RCA) 4 V
Line Level Inputs (XLR) 5.5 V
Preamplifier Output Level / Impedance: 1.5 V / 470 ohms
Signal to Noise Ratio (A weighted)
Phono Input (MM) 80 dB
Line Level Inputs 100 dB
DIGITAL SECTION
Frequency Response: 10 Hz – 90k Hz (0 ± 2 dB, Max)
Signal to Noise Ratio (IHF ”A” weighted): 100 dB
Input Sensitivity/Impedance: 0 dBfs / 75 ohms
Preamplifier Output Level: 1.42 V (at -20 dB)
Coaxial/Optical Digital Signals: SPDIF LPCM (up to 192k Hz 24 bit)
PC-USB: USB Audio Class 1.0 (up to 96kHz 24bit)
USB Audio Class 2.0 (up to 384kHz 32bit)*
*Driver installation required
MQA and MQA Studio (up to 384kHz 24bit)
Roon Tested
Power Requirements:
USA: 120 volts, 60 Hz
EC: 230 volts, 50 Hz
Power Consumption: 400 watts
Standby Power Consumption
Normal < 0.5 watts
Network wakeup < 2 watts
Dimensions (W x H x D): 431 x 144 x 358 mm
(17 x 5 5/8 x 14 1/8 ins.)
Weight (net): 13.6 kg, 29.98 lbs.
