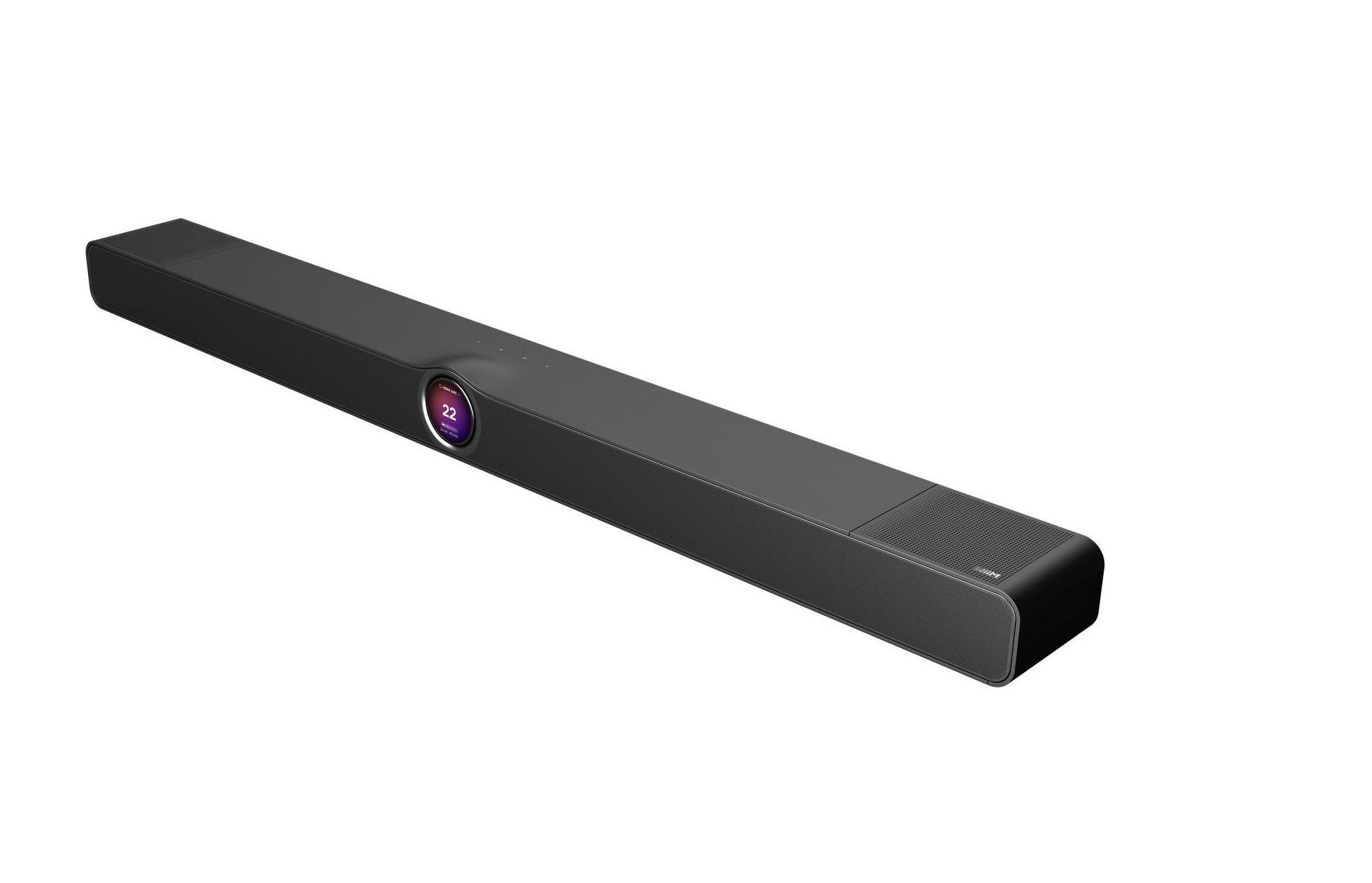

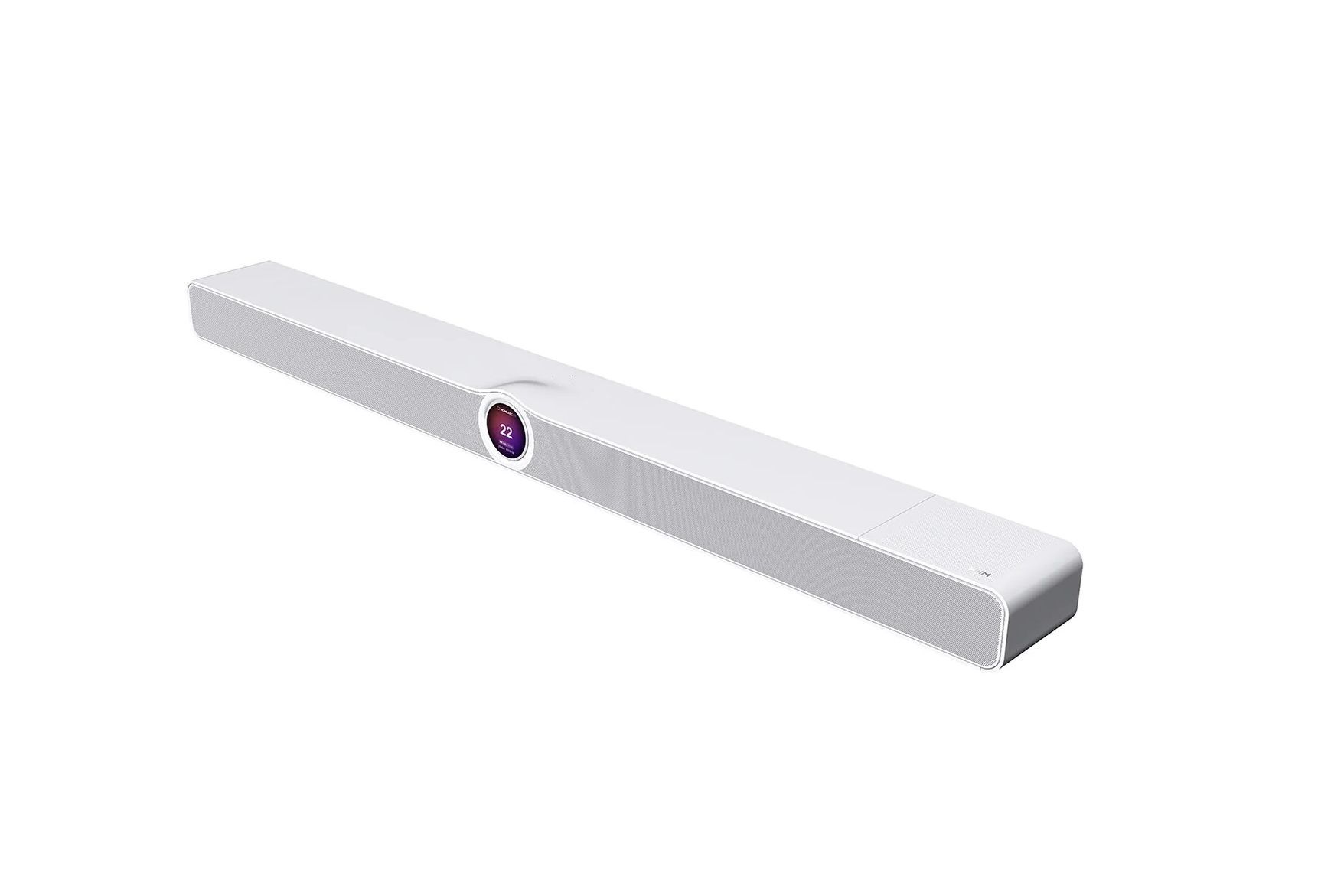

WiiM Bar

Description

Movie night. Morning playlists. Game day. Late-night TV. WiiM Bar fits every moment.
Start a movie through HDMI eARC and feel sound rise above the screen. Switch to music and see album art glow from the soundbar. Group with other WiiM devices for synchronized whole-home listening, or build out your living room with wireless surrounds and subwoofer support when you’re ready.

Control Without Friction
WiiM Bar gives you multiple ways to control your listening experience. Use the round touch display for quick playback, source selection, EQ, and Smart Presets. Open the WiiM Home App for streaming, grouping, routines, and deeper sound customization. Use Alexa, Google Assistant, or the included Voice Remote for easy everyday control.

Your music.Your way.
Total freedom for your listening experience. Stream natively via Spotify and Tidal Connect, or dive into the WiiM Home App to personalize your sound, sync multi-room audio, and browse all your services in one elegant place.

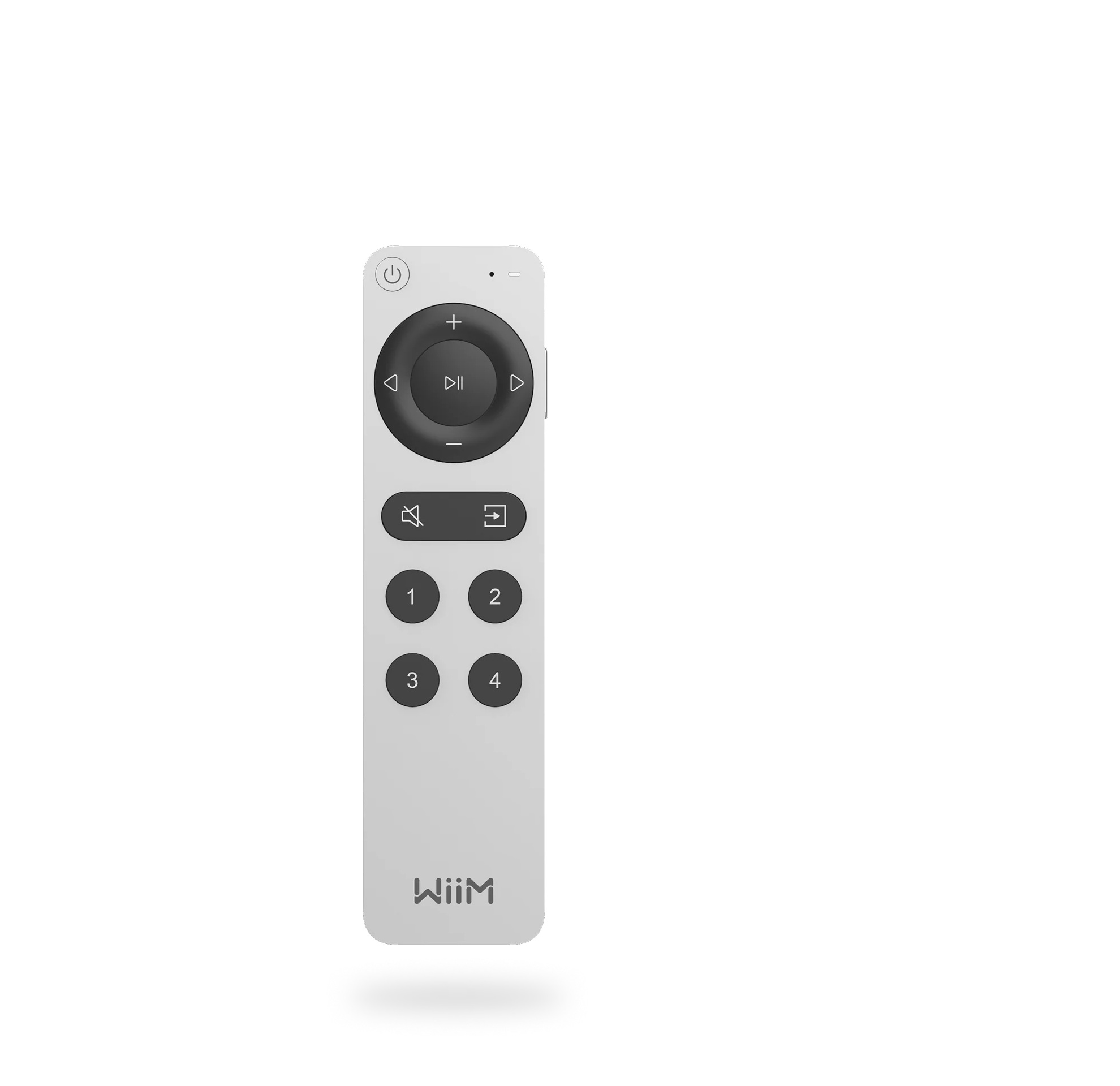

Take full control with the WiiM Bar Voice Remote
WiiM Bar Voice Remote crafted with a sleek body, rechargeable battery, and intuitive Push-to-Talk Alexa—plus smart presets and dedicated playback buttons for a seamless, intuitive experience.

Sound That Adapts to Real Rooms and Real Life
RoomFit™ auto-correction helps tailor playback to your room layout and speaker placement. Clear Voice and AI Dialog Enhancement help bring speech forward during busy scenes, while Night Mode helps reduce dramatic volume swings for lower-volume listening.

Built for Cinema. Tuned for Music.
An 8-driver acoustic system with 4 passive radiators, top-firing height channels, and 135W system power. Behind the sleek form is a serious acoustic system: three front mid-woofers, three front tweeters, two top full-range height drivers, and four passive radiators. Together, they support a wide soundstage, clear vocals, height effects, and stronger bass performance from a single soundbar.

Built for Modern Home Theater
Connect through HDMI eARC and enjoy support for LPCM, Dolby Atmos/TrueHD/DD+, AC3, DTS, and DTS:X. Stream over Wi‑Fi 6E or Ethernet, connect through Bluetooth 5.4, or use optical, line-in, USB Audio In/Out, and USB Host for flexible playback.

The Freedom of WiiM Streaming
Stream from the WiiM Home App or connect through Google Cast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS, and Roon.

Start with the bar. Build the theater.
Experience cinematic 3.0.2 Dolby Atmos® and DTS:X® right out of the box. When you’re ready, wirelessly add compatible WiiM surrounds and a subwoofer to build a fully immersive 5.1.2 theater at your own pace—no messy cables required.

SPECIFICATIONS

OVERVIEW

Product type : Display-first smart soundbar
Tagline : See the Sound. Build the Theater.
Channel layout : 3.0.2
Expandable home theater : Expandable to 5.1.2 with compatible WiiM surround and subwoofer devices
Primary use cases : TV, movies, music streaming, gaming, whole-home audio, scalable home theater
Control options : Touch display, WiiM Home App, voice control, and WiiM Bar Remote

AUDIO SYSTEM

Acoustic system : 8-driver acoustic system with 4 passive radiators
Front mid-woofers : 0.12 × 4.33 × 2.05 inches ( 3 x 110 × 52 mm) mid-woofers
Front tweeters : 0.12 × 2.05 × 2.05 inches (3 x 52 × 52 mm) tweeters
Top height drivers : 0.08 × 2.05 × 2.05 inches (2 x 52 × 52 mm) full-range drivers
Passive radiators : 0.16 × 4.53 × 1.97 inches (4 x 115 × 50 mm) passive radiators, front × 2 and rear × 2
Max system power : 135 W
Native channel layout : 3.0.2
Height effects : Top-firing height channels

AUDIO FORMATS & HOME THEATRE

Supported audio formats : LPCM, Dolby Atmos/TrueHD/DD+, AC3, DTS, DTS:X
Dolby Atmos support : Yes, via supported content and compatible input setup
DTS:X support : Yes
HDMI home theater connection : HDMI eARC
Native configuration : 3.0.2 Dolby Atmos and DTS:X soundbar
Expandable configuration : Up to 5.1.2 with compatible WiiM surround and subwoofer devices
Surround expansion : Wireless surround support with compatible WiiM devices
Subwoofer expansion : Wi-Fi wireless subwoofer support with compatible WiiM devices (Google Cast, Roon Ready & LMS audio sources support coming in an upcoming update).

SMART AUDIO & EQ

Room correction : RoomFit™ auto-correction
Dialogue enhancement : Clear Voice and AI Dialog Enhancement
Night listening : Night Mode
Sound modes : Movie Mode, Music Mode, Voice Enhance Mode, Night Mode
Preset EQ : 24 preset EQ settings
Graphic EQ : 10-band Graphic EQ
Parametric EQ : 10-band Parametric EQ, where supported in the WiiM Home App
Per-source EQ : Supported via WiiM Home App, where available
App customization : Sound modes, EQ, RoomFit™, input settings, grouping, and device preferences

DISPLAY & ON-DEVICE SUPPORT

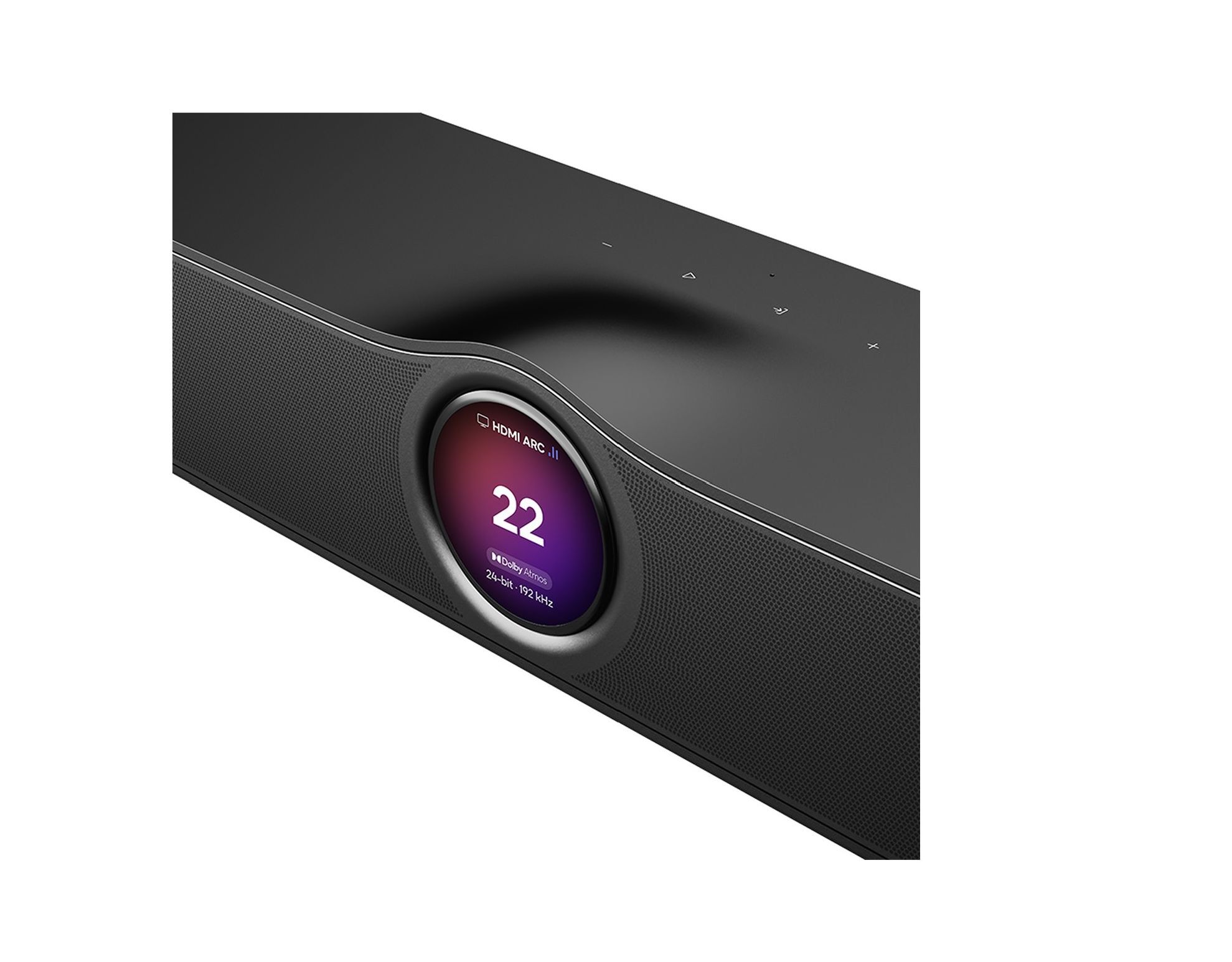

Display : Glass-covered 2.1-inch Hi-Res full-color round LCD touch screen
Display type : Round touch display
Display content : Album art, track information, time, EQ, Smart Presets, Recently Played, clock faces, dynamic wallpapers, and album art standby
Playback controls : Play, pause, skip, and like
Source controls : Source selection from the display
EQ controls : Quick EQ access on the device; deeper EQ control in the WiiM Home App
Smart Presets : One-tap access to favorite preset routines and content
Recently Played : Access to recently played playlists, stations, and shows
Personalization : Multiple clock faces, dynamic wallpapers, and album art standby
Proximity-lit capacitive buttons : Volume +, Volume –, Play/Pause, Source Switch
Status LED : RGB+W status LED

APP, VOICE & REMOTE CONTROL

App control : WiiM Home App
Voice control : Alexa and Google Assistant
Remote : WiiM Bar Remote
Remote controls : Playback, volume, source switching, sound modes, mute/unmute, standby, and voice control where available
On-device control : 2.1-inch round touch display and proximity-lit capacitive buttons
Setup control : WiiM Home App via WiFi or Ethernet
Ecosystem control : Manage streaming, grouping, EQ, presets, and compatible WiiM devices from the WiiM Home App

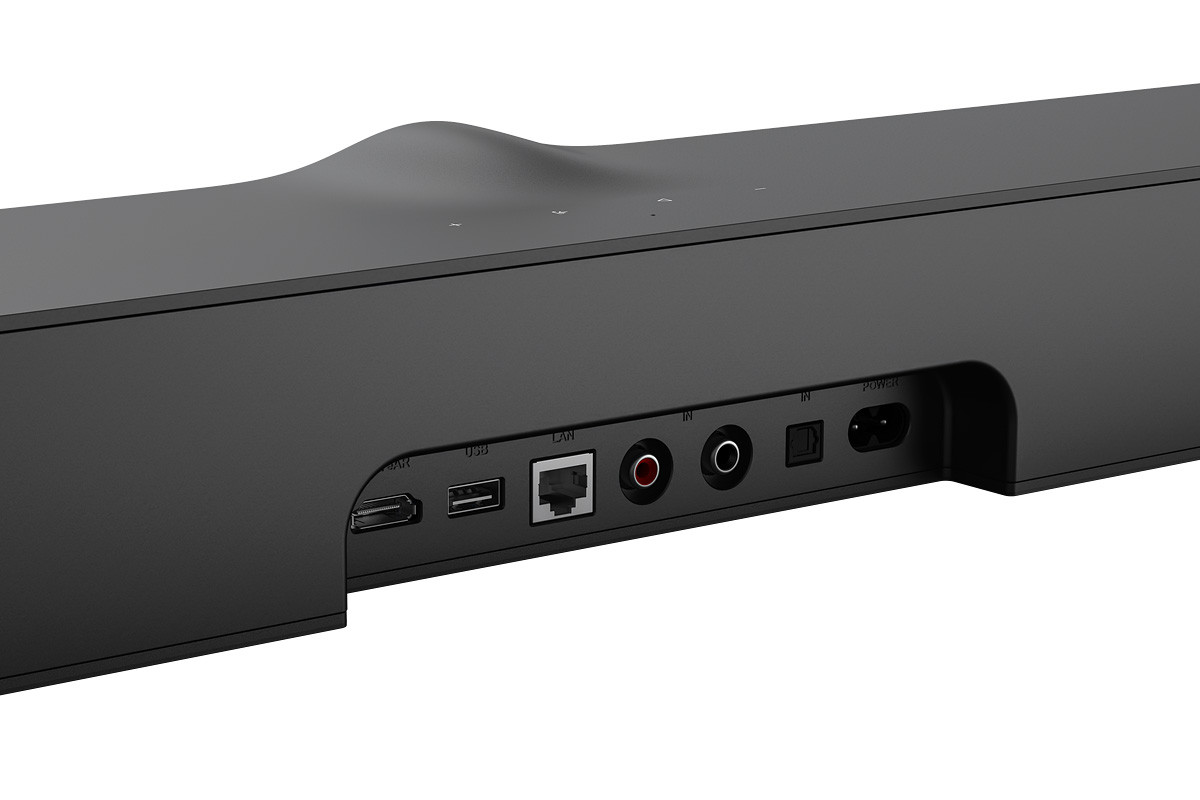

INPUTS, OUTPUTS & CONNECTIVITY

HDMI : HDMI eARC
Optical : Optical In
Analog input : Line In
Ethernet : 10/100 Mbps Ethernet
USB : USB Host for storage

USB AUDIO INPUT OR OUTPUT

WiFi : WiFi 6E
WiFi bands : 2.4 GHz, 5 GHz, and 6 GHz
WiFi standard : 802.11 b/g/n/ax
Bluetooth : Bluetooth 5.3
Bluetooth profiles : BLE, A2DP Rx/Tx, AVRCP, HID
LE Audio : Supported via software update
Bluetooth input : Stream from compatible phones, tablets, TVs, and laptops
Bluetooth output : Output to compatible Bluetooth speakers, headphones, or earphones, where supported
Wired network behavior : Ethernet available for a stable wired network connection

STREAMING & PROTOCOLS

Streaming app : WiiM Home App
In-app streaming : Stream 20+ music services through the WiiM Home App
Casting and streaming protocols : Google Cast Audio / Chromecast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS, Roon
Example music services : Spotify, Amazon Music, YouTube Music, TIDAL, Qobuz, Deezer, TuneIn, SoundCloud, Pandora, iHeartRadio, vTuner, SoundMachine, KKBOX, Soundtrack Your Brand
AirPlay 2 : Not supported
Network playback : WiFi, Ethernet, DLNA/UPnP, and WiiM Home App
Direct app control : Supported with compatible services such as Spotify Connect, TIDAL Connect, Qobuz Connect, and Google Cast Audio

MULTI-ROOM & WiiM ECOSYSTEM

WiiM multi-room audio : Group WiiM Bar with compatible WiiM devices for synchronized multi-room listening
Compatible WiiM ecosystem : Designed to integrate with WiiM Amp, WiiM Ultra, WiiM Pro, WiiM Mini, and WiiM Edition speakers for multi-room music grouping
Home theater expansion : Expand from 3.0.2 to up to 5.1.2 with compatible WiiM surround and subwoofer devices
Surround setup : Use compatible WiiM devices as wireless surround channels
Subwoofer setup : Add compatible WiiM subwoofer support for deeper bass
Other multi-room options : Alexa multi-room and Google Cast multi-room, where supported
Physical input multi-room : For Line In, Optical In, HDMI eARC, or Bluetooth as multi-room sources, use a WiiM-device group

USB MEDIA LIBRARY

USB function : USB Host for storage
Media library : Access a personal media library from connected USB storage
Media server : Can act as a media server for other WiiM and DLNA devices on the same network
Supported storage examples : USB drive or compatible external storage
Supported file systems : FAT32, NTFS, EXT4, where supported
Playback control : Browse and control USB media through the WiiM Home App

PHYSICAL

Dimensions : 41.7 × 4.1 × 3.1 inches (1060 × 105 × 80 mm)
Height without foot : 3.1 inches (80 mm)
Weight : 11.02 lb / 5 kg
Placement : TV console or wall mount
Wall mounting : Wall brackets included
Display location : Front-facing 2.1-inch round touch display
On-device controls : Top-panel capacitive controls and front touch display
Status light : RGB+W LED status indicator

POWER

Power input : 100–240V AC
Frequency : 50/60 Hz
Max system power : 135 W
Power cable : Included

WHAT’S INCLUDED
WiiM Bar
WiiM Bar Remote
User Guide
Power Cable
HDMI Cable
Optical Cable
Wall brackets × 2 with screws
